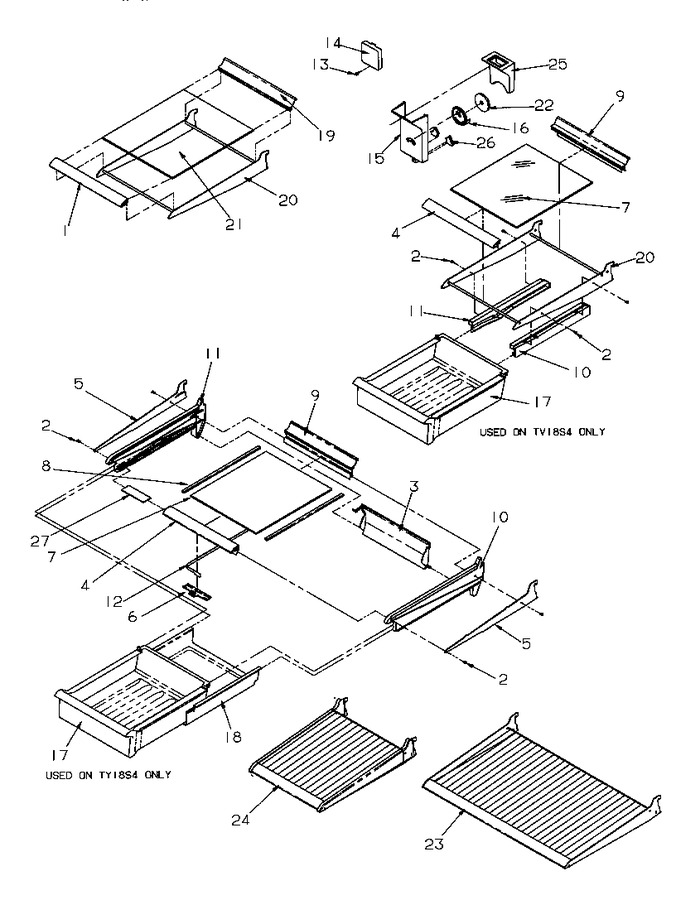

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10459916 | Extrusion, Mk Fr |
|
- | |||||
| 2 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 3 | 10445702 | Scoop, Air |
|
- | |||||
| 4 | 10450315 | Extrusion-mk Fr |
|
- | |||||
| 5 | 10681402 | Rail, Pntd |
|
- | |||||
| 5 | 10681403 | Rail, Pnt |
|
- | |||||
| 6 | 10588201 | Slide, Mtkp Cont. |
|
- | |||||
| 7 | 10370014 | Glass, Shelf (18-19) |
|
- | |||||
| 8 | 10562502 | Ext, Gl Shelf Side |
|
- | |||||
| 9 | 10451402 | Extrusion Mk Rear |
|
- | |||||
| 10 | 10417301 | Glide, Meat Kpr. |
|
- | |||||
| 11 | 10432101 | Glide, Meat Kpr. |
|
- | |||||
| 12 | 10454003 | Band, Mk Control |
|
- | |||||
| 13 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 14 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 15 | 10642103 | Cover, Mk Air Sply |
|
- | |||||
| 16 | 10479401 | Control, Mt. Kpr. Air Sup |
|
- | |||||
| 17 | 10417115 | Pan, Meat Keeper |
|
- | |||||
| 18 | 10440904 | Sleeve, Mt Kpr. |
|
- | |||||
| 19 | 10946002 | Extr, Rear Shelf |
|
- | |||||
| 20 | 10460101 | Shelf, Glass Frame |
|
- | |||||
| 21 | Y10370015 | Usr 10370097 (18) |
|
- | |||||
| 22 | 10565701 | Insert, Mk Control |
|
- | |||||
| 25 | 10479103 | Tunnel, Mt Kpr |
|
- | |||||
| 26 | 10852401 | Gasket, Mt Kpr Duct |
|
- | |||||
| 27 | 12027302 | Stop- Slide (Replaces: 12019302) |
|
$ 10.36 | |||||
| NI | 10480411 | Ass`y, Glass Shelf |
|
- |
