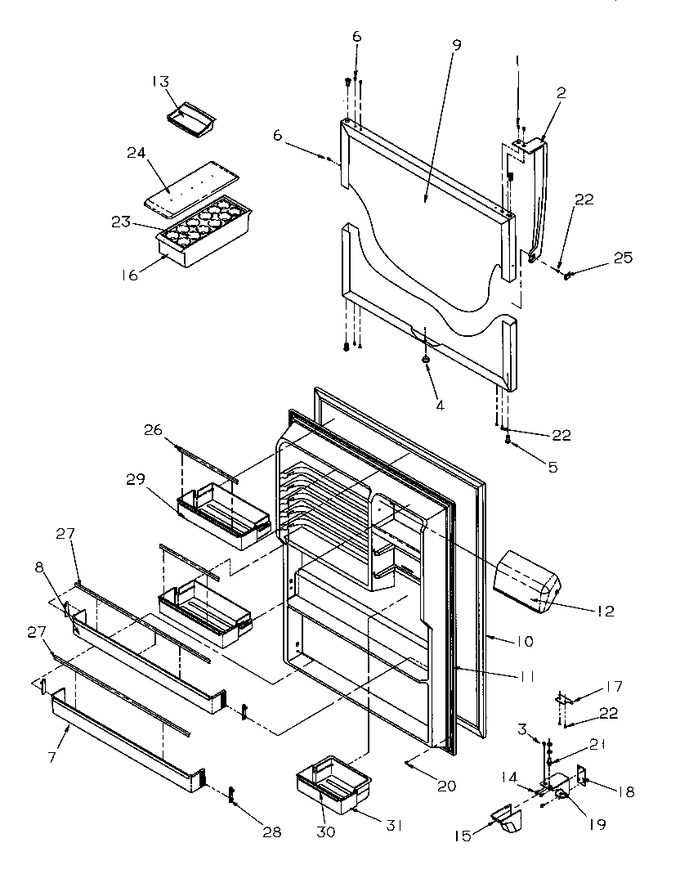

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 2 | 10253510 | Handle Assy Ref W |
|
- | |||||
| 3 | M0310330 | Plug, Button White |
|
- | |||||
| 4 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 5 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 6 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 7 | 10419203 | Retainer, Ref Door |
|
- | |||||
| 8 | 10419103 | Retainer, Ref Door |
|
- | |||||
| 9 | 10925404W | Ass`y, Ref Door (white) |
|
- | |||||
| 10 | WP12550109Q | Gasket,ref Dr(white) (Replaces: 10456801) |
|
Immediately | $ 322.33 | ||||
| 11 | 10461705 | Liner,ref Door |
|
- | |||||
| 12 | 10423414 | Door,dairy |
|
- | |||||
| 13 | 10310901 | Tray, Butter |
|
- | |||||
| 14 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 15 | 10462802 | Cover, Hinge Lower (white) |
|
- | |||||
| 16 | 10423128 | Bin-utility |
|
- | |||||
| 17 | 10447102 | Stop, Door |
|
- | |||||
| 18 | 10447903 | Shim, Btm Hinge |
|
- | |||||
| 18 | 10447904 | Shim Hinge |
|
- | |||||
| 19 | 10433208 | Hinge, Bottom White |
|
- | |||||
| 20 | M0219730 | Screw |
|
$ 7.65 | |||||
| 21 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 22 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 23 | 10436505 | Tray, Egg |
|
- | |||||
| 24 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 25 | 10201802 | Cover-handle Screw W |
|
- | |||||
| 26 | 10183979 | Trim- Door Shelf |
|
- | |||||
| 27 | 10183981 | Trim-door Shelf |
|
- | |||||
| 28 | 10202001 | Clip, Retainer |
|
- | |||||
| 29 | 10419703 | Shelf, Ref Door |
|
- | |||||
| 30 | 10183980 | Trim-door Shelf |
|
- | |||||
| 31 | 10502904 | Bucket, Ref Door |
|
- |
