Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10474901 Grille, Toe (18) Appelez-nous -
2 WP12246608 Plug, Button (blk)   (Replaces: M0310727) In-Stock Immediately $ 8.15

3 10430211 Pan, Crisper Appelez-nous -
4 10797501 Slide, Crisper Appelez-nous -
5 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

6 10370016 Glass, Shelf (18) Appelez-nous -
7 10688016 Extr. L-crisper Frt Appelez-nous -
7 10688013 Extr. R-crisper Frt Appelez-nous -
8 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 47.84

10 10481001 Roller, Pan Special Order $ 10.99

11 D7599002 Ladder, Center Appelez-nous -
12 D7874402 Cover-fl Tb/plug Appelez-nous -
13 10530202 Seal, Crisper Appelez-nous -
14 10467802 Band, Crisper Control (18-19) Appelez-nous -
15 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

16 10505608 Extr, Wire Shelf Appelez-nous -
17 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

18 M0230923 Screw Appelez-nous -
19 10423121 Bin, Ice Appelez-nous -
20 WP12246608 Plug, Top Hinge Button (blk)   (Replaces: M0310731) In-Stock Immediately $ 8.15

21 D7599105 Ladder, Side Appelez-nous -
22 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

23 10687702 Rail, Crisper Front(l) Appelez-nous -
24 10423001 Rack, Ice Service Appelez-nous -
25 M0219523 Screw Appelez-nous -
26 M0270508 Washer Appelez-nous -
27 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

28 10433805 Rail, Crisper Back Appelez-nous -
29 10432701 Rail, Side Crisper Appelez-nous -
30 10432702 Rail, Side Crisper Appelez-nous -
31 10432803 Rail, Ctr. Crisper Appelez-nous -
32 10432804 Rail, Ctr. Crisper Appelez-nous -
33 10435605 Rail, Crisper Back Appelez-nous -
34 10551501 Clip-toe Grille Appelez-nous -
35 10506001 Shelf, Cantilever Wire Appelez-nous -
36 10687701 Rail, Crisper Fr0nt(r) Appelez-nous -
NI 10698503 Assy, Crisper Frame Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

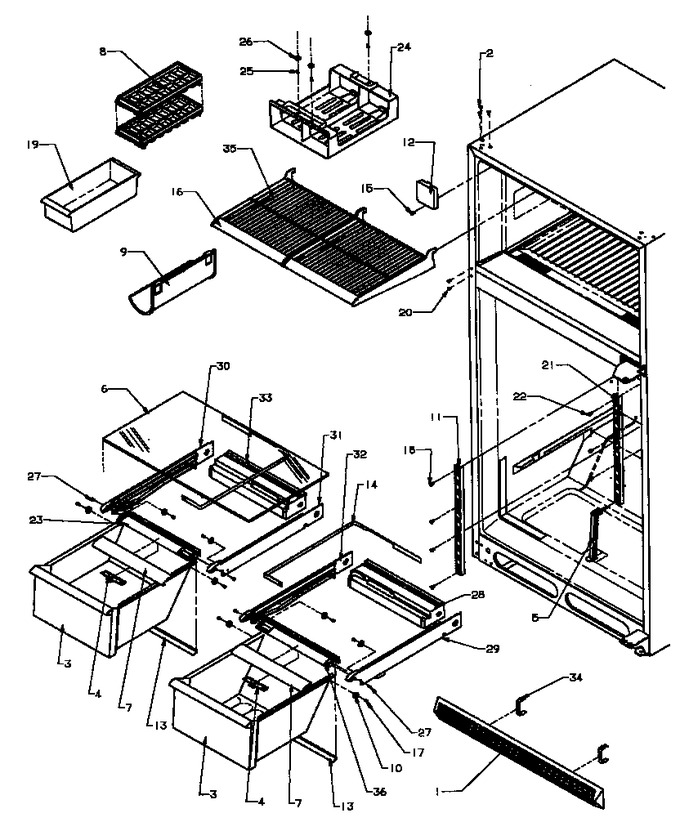

Diagram for TZ19R2E (BOM: P1181901W E)
