Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3076901 Plug-button Special Order $ 5.70

2 A3080001 Plug, Button (blk) Appelez-nous -
3 WP10450603 Roller   (Replaces: 10450601) Special Order $ 8.27

4 10450701 Roller, Rear Special Order $ 28.91

5 10450901 Axle, Roller Appelez-nous -
6 M0265843 Screw, Tf Appelez-nous -
7 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

8 10514801 Bracket, Roller Appelez-nous -
9 M0204338 Screw, Mach Appelez-nous -
10 M0286708 Nut, Speed Special Order $ 47.85

11 M1205302 Rivet Special Order $ 5.85

12 10663002 Insul., L. Foot Appelez-nous -
12 10663001 Insul., R. Foot Appelez-nous -
13 10427202 Housing-roller Appelez-nous -
14 10427104 Brace Appelez-nous -
15 10567202 Kit, Lw Hinge Plate Appelez-nous -
NI 10476101 Assy, Roller Brkt Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

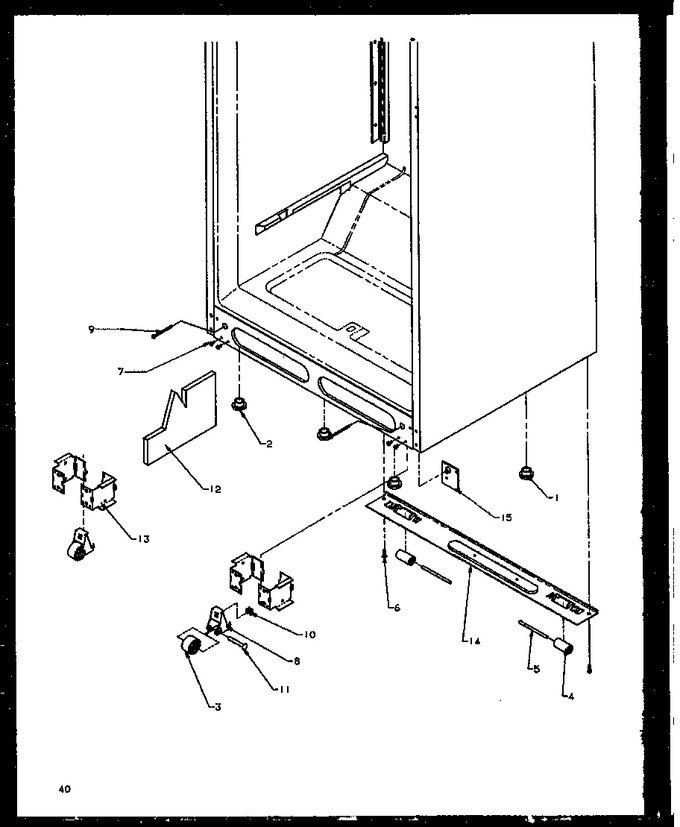

Diagram for TZI22R2W (BOM: P1168013W W)
