01 - Cabinet Back


02 - Cabinet Bottom


03 - Cabinet Shelving


04 - Cabinet Shelving


05 - Compressor Compartment


06 - Control Panel


07 - Divider Block


08 - Evap Area


09 - Factory Installed Ice Maker


10 - Fz Door


11 - Ref Door

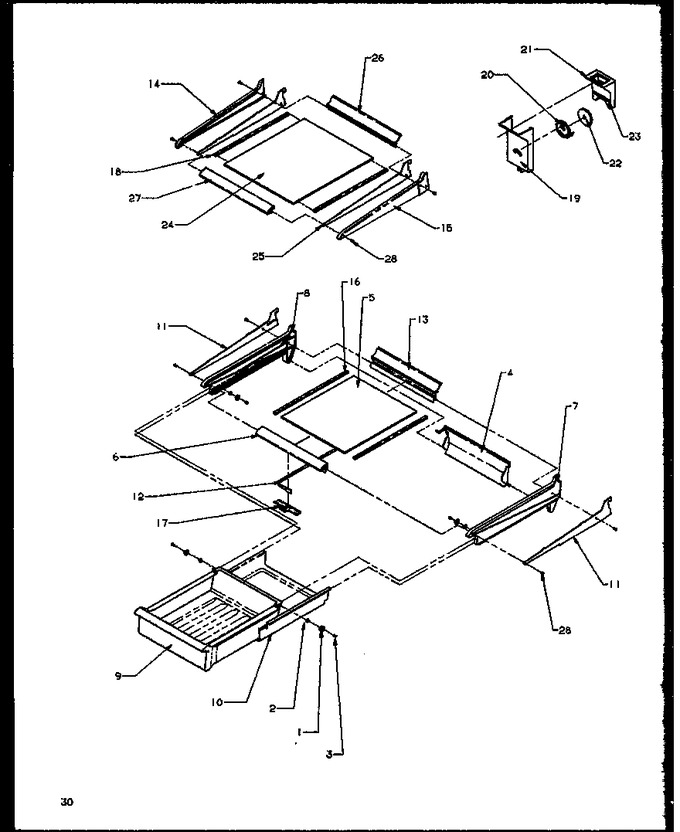

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10481001		Roller, Pan				$ 10.99
2	67006692		Screw, Shoulder   (Replaces: 10481301)				$ 10.79
3	67006692		Screw, Hi Lo   (Replaces: M0237932)				$ 10.79
4	10445701		Scoop, Air V		Appelez-nous	-
5	10370010		Shelf, Glass		Appelez-nous	-
6	10450307		Extr., Meat Kpr. Front		Appelez-nous	-
7	10417301		Glide, Meat Kpr.		Appelez-nous	-
8	10432101		Glide, Meat Kpr.		Appelez-nous	-
9	10417012		Pan,meatkeeper		Appelez-nous	-
10	10437304		Sleeve, Mk		Appelez-nous	-
11	10681403		Rail, Pnt		Appelez-nous	-
11	10681402		Rail, Pntd		Appelez-nous	-
12	10454002		Band, Meat Kpr. Cont.		Appelez-nous	-
13	10451401		Extr Mk Rear		Appelez-nous	-
14	10436603		Cover, Glass Shelf Rail		Appelez-nous	-
15	10436604		Cover, Glass Shelf Rail		Appelez-nous	-
16	10562502		Ext, Gl Shelf Side		Appelez-nous	-
17	10588201		Slide, Mtkp Cont.		Appelez-nous	-
18	10562502		Ext, Gl Shelf Side		Appelez-nous	-
19	10642101		Cover, Mk Air Sply		Appelez-nous	-
20	10479401		Control, Mt. Kpr. Air Sup		Appelez-nous	-
21	10479103		Tunnel, Mt Kpr		Appelez-nous	-
22	10565701		Insert, Mk Control		Appelez-nous	-
23	A3189340		Gasket Foam		Appelez-nous	-
24	10370010		Shelf, Glass		Appelez-nous	-
25	10681402		Rail, Pntd		Appelez-nous	-
26	10436901		Extr, Gl Shelf Rear		Appelez-nous	-
27	10436807		Ext, Gl Shelf Front		Appelez-nous	-
28	WPW10348409		Mounting Screw   (Replaces: M0237921)			Immediately	$ 8.20
NI	10480705		Assy, Shelf		Appelez-nous	-
