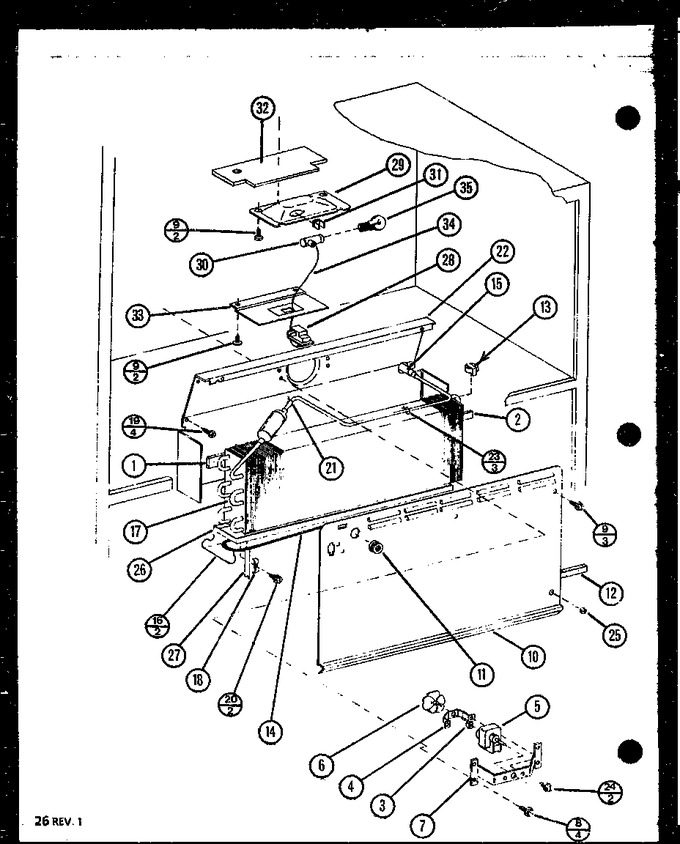

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8322902		Block Evap. Coil		Appelez-nous	-
2	B8361701		Block Evap Coil		Appelez-nous	-
3	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
4	C8881301		Brkt Evap Fan		Appelez-nous	-
5	WPC8891605		Motor, Evap Fan   (Replaces: C8891601)				$ 344.82
6	C8927801		Blade, Evap Fan		Appelez-nous	-
7	D7524501		Brkt Evap Fan Shroud		Appelez-nous	-
8	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
9	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
10	D7874501		Evap Cover		Appelez-nous	-
11	A3138301		Grommet		Appelez-nous	-
12	A3189320		Gasket, Foam		Appelez-nous	-
13	WP10442411		Thermostat, Defrost   (Replaces: C8978402)			Immediately	$ 44.02
14	D7549703		Heater Evap.		Appelez-nous	-
15	D7759004		Heat Exchanger Assy.		Appelez-nous	-
16	C8952001		Clip		Appelez-nous	-
17	R0170032		Evaporator Assembly		Appelez-nous	-
18	A3253803		Clamp		Appelez-nous	-
19	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
20	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
21	M0321204		Wire Tie		Appelez-nous	-
22	D7691110		Evap Fan Shroud		Appelez-nous	-
23	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
24	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
25	M0310305		Plug, Button (wht)		Appelez-nous	-
26	10067701		Tray, Drip Evap		Appelez-nous	-
27	10067801		Tube Drip Tray		Appelez-nous	-
28	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
29	D7760101		Housing, Fz Light		Appelez-nous	-
30	C8973403		Socket-light		Appelez-nous	-
31	B5733302		Clip, Ground		Appelez-nous	-
32	C8976301		Barrier		Appelez-nous	-
33	10073201		Cover Light		Appelez-nous	-
34	B5781002		Jumper Wire		Appelez-nous	-
35	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
