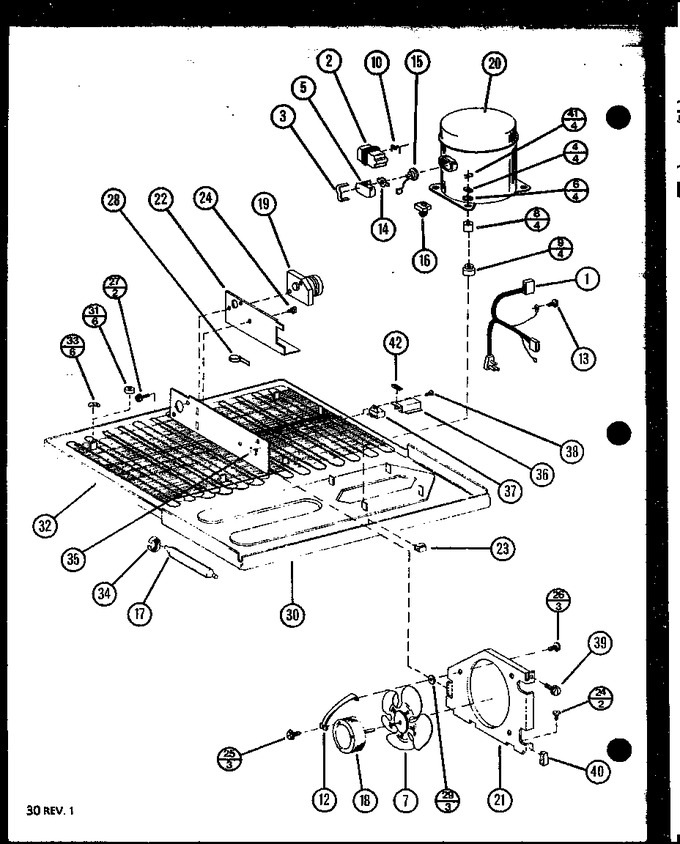

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10104801		Harness M.c.		Appelez-nous	-
2	C8960801		Term Cover		Appelez-nous	-
3	YB8358601		Bale Strap		Appelez-nous	-
6	B8352901		Clip Comp		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)			Immediately	$ 7.55
12	C8982101		Bracket, Cond Motor		Appelez-nous	-
13	M0253916		Screw		Appelez-nous	-
15	C8906203		Overload		Appelez-nous	-
16	2154436		Relay-ptc   (Replaces: C8931502)				$ 141.69
17	WPB2150504		Drier   (Replaces: B5715001)				$ 136.98
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 88.15
19	D7790401		Timer, Defrost		Appelez-nous	-
20	W10439652		Kit, Compressor (dan Nf7ak)   (Replaces: D7736201)				$ 442.20
21	D7691002		Cond. Fan Shrd		Appelez-nous	-
22	D7752701		Bracket, Timer		Appelez-nous	-
23	M0110508		Clip		Appelez-nous	-
24	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
25	M0223803		Screw		Appelez-nous	-
26	M0221332		Screw, Shoulder		Appelez-nous	-
27	M0218118		Screw		Appelez-nous	-
28	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
29	M0500107		Grommet K		Appelez-nous	-
30	D7595411		Base Pan - Ptd		Appelez-nous	-
31	B8346301		Spacer Cond.		Appelez-nous	-
32	D7654301		Condenser Pntd		Appelez-nous	-
33	M0293703		Speednut		Appelez-nous	-
34	M0104002		Clamp-drier		Appelez-nous	-
35	A9008301		Felt		Appelez-nous	-
36	C8931101		Shield-capacitor		Appelez-nous	-
37	WPW10662129		Capacitor   (Replaces: C8931602)			Immediately	$ 58.86
38	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
39	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
40	B5759604		Gasket		Appelez-nous	-
42	A3261703		Grommet Per In.		Appelez-nous	-
NI	M0275571		Sealer Ea		Appelez-nous	-
