View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Freezer Door

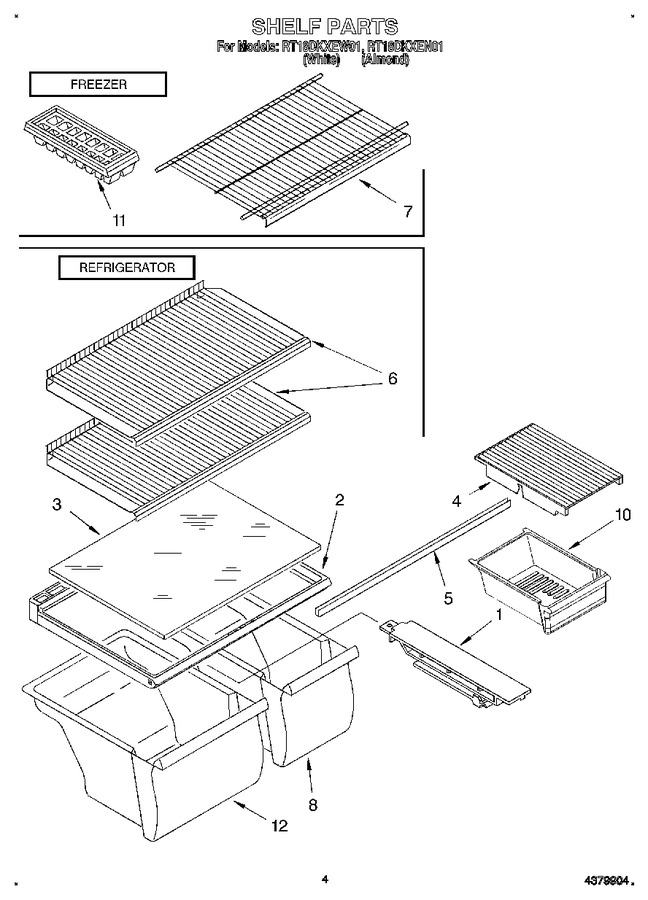

03 - Shelf
04 - Refrigerator Door
05 - Liner
06 - Unit, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 36.48 | ||||
| 2 | WP2314548 | Crisper Cover (Replaces: 2163833) |
|
$ 259.83 | |||||
| 3 | WP2169921 | Glass, Crisper Cover (Replaces: 2173299) |
|
$ 258.93 | |||||
| 4 | 2163848 | Cover, Meat Pan |
|
$ 71.41 | |||||
| 5 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 102.08 | |||||
| 6 | 2166147 | Shelf, Wire (2) |
|
- | |||||
| 7 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 123.40 | |||||
| 8 | W10856580 | Pan, Crisper (Replaces: 2173310) |
|
Immediately | $ 177.03 | ||||
| 10 | 2173312 | Pan, Meat |
|
- | |||||
| 11 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 12 | W10854037 | Pan, Crisper (Replaces: 2173311) |
|
Immediately | $ 179.19 |
