SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional

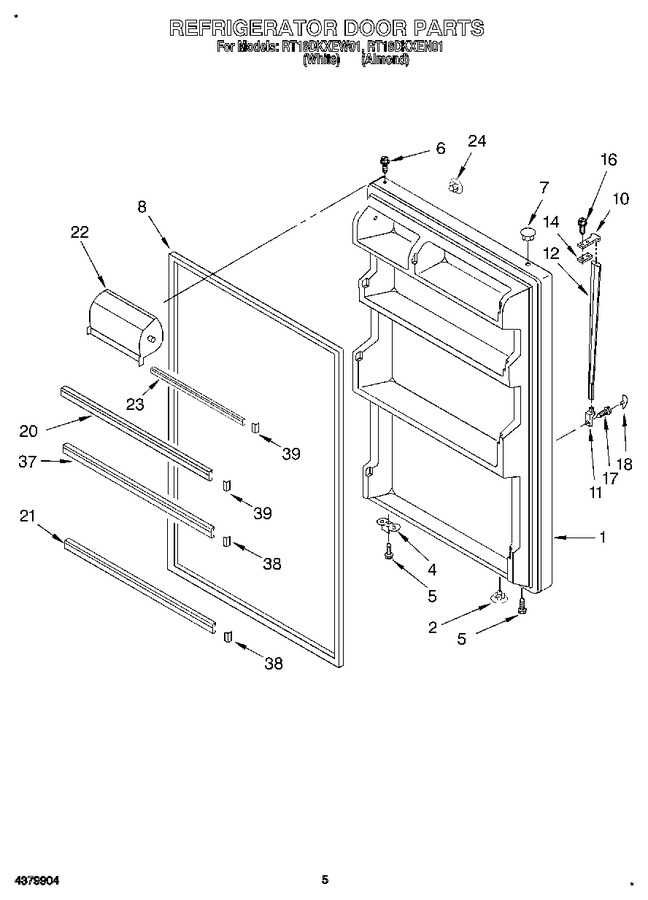

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171269		Refrigerator Door (includes No.8) (white)		Appelez-nous	-
1	2171270		Refrigerator Door (includes No.8) (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
4	2159364		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2159057		Door Gasket, Magnetic (service)			Immediately	$ 164.66
10	819342		Handle End   (Replaces: 1108952)			Immediately	$ 47.96
11	819342		Handle End, Side   (Replaces: 1110056)			Immediately	$ 47.96
12	1109166		Handle, Center		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 1110059)				$ 9.68
20	WP2201061		Trim, Door Shelf   (Replaces: 2163677)				$ 124.32
21	2163683		Trim, Door Shelf		Appelez-nous	-
22	WP2218113		Door Compartment   (Replaces: 2166477)			Immediately	$ 50.33
23	WP2201061		Trim, Door Shelf   (Replaces: 2163650)				$ 124.32
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
37	2163682		Trim, Door Shelf		Appelez-nous	-
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.79
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 8.03

    View Diagram in Separate Window       Print Part List
