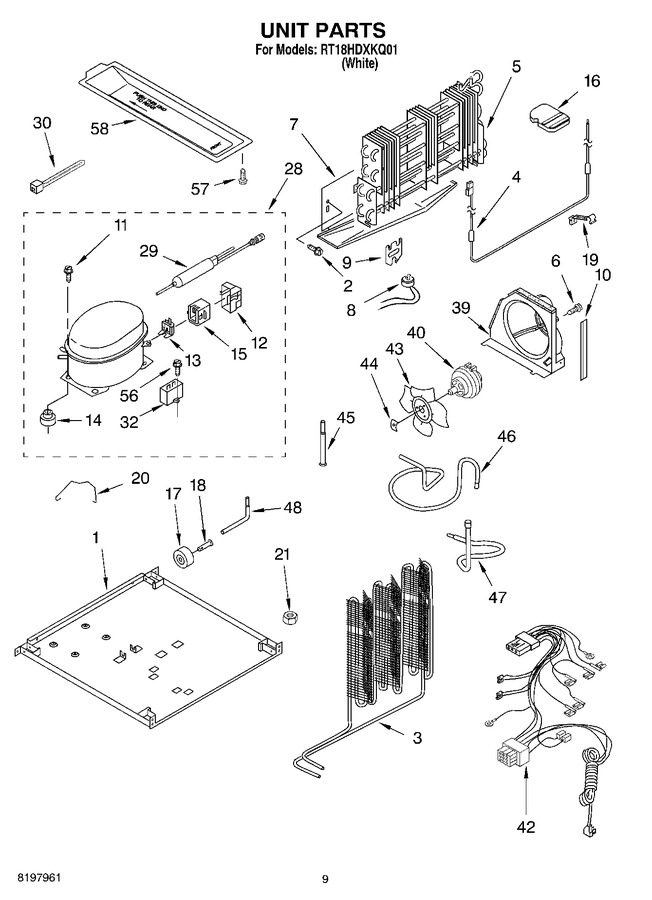

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205341 | Plate, Unit Mounting |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 3 | 2212599 | Condenser |
|
- | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2176300) |
|
$ 104.62 | |||||
| 5 | 2195391 | Evaporator Assy. |
|
- | |||||
| 6 | WP8281196 | Screw (Replaces: 489494) |
|
Immediately | $ 7.19 | ||||
| 7 | 2172619 | Drain Pan |
|
- | |||||
| 8 | WP4387503 | Defrost Bimetal (Replaces: 2182380) |
|
Immediately | $ 47.89 | ||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2163780 | Extension, Air Baffle |
|
- | |||||
| 11 | 876811 | Screw (Replaces: 489373) |
|
$ 7.42 | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 90.75 | |||||
| 13 | 4387913 | Overload Service (only) (includes Relay) (Replaces: 4387766) |
|
Immediately | $ 84.39 | ||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 15 | 8201647 | Start-device Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2212963) |
|
$ 180.03 | |||||
| 16 | 2201184 | Support Block |
|
$ 6.43 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 2212997 | Strap |
|
- | |||||
| 21 | N/A | Nut (not Serviced) |
|
- | |||||
| 28 | W10309988 | Compressor (includes Items 12,13,15,29, 32, & 56) (Replaces: 2216049) |
|
Immediately | $ 559.32 | ||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 52.57 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 52.57 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.90 | |||||
| 32 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 32 | WP4387764 | Capacitor (service) (Replaces: 4387764) |
|
$ 177.04 | |||||
| 39 | 2198921 | Air Baffle |
|
- | |||||
| 40 | W10822259 | Motor, Condenser (Replaces: 2188537) |
|
Immediately | $ 221.30 | ||||
| 42 | 2187384 | Wire Assembly Unit |
|
- | |||||
| 43 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 44 | WP486692 | Nut (Replaces: 486692) |
|
$ 7.82 | |||||
| 45 | 2212603 | Tube, Transition |
|
- | |||||
| 46 | 2205533 | Tube, Discharge |
|
- | |||||
| 47 | 2214924 | Tube, Suction (Replaces: 2214990) |
|
$ 98.29 | |||||
| 48 | 2154109 | Tube, Process |
|
$ 72.63 | |||||
| 56 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 57 | 3400518 | Screw |
|
$ 12.98 | |||||
| 58 | W11729596 | Eckmf-94 (Replaces: 2155469) |
|
Immediately | $ 150.98 | ||||
| 58 | 350956 | Enamel, Almond (12 Oz. Spray Can) |
|
$ 51.44 | |||||
| 58 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 58 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 58 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 58 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 58 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 58 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 58 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 58 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 58 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 58 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 58 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 58 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 58 | 1117510 | Torx Key |
|
$ 5.84 | |||||
| 58 | 2210451 | Evaporator Tray |
|
$ 66.37 | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 58 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 58 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 58 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | |||||
| 58 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 58 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 58 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 58 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 58 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 58 | 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 89.66 | |||||
| 58 | 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 58 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 |
