SELECT A DIAGRAM

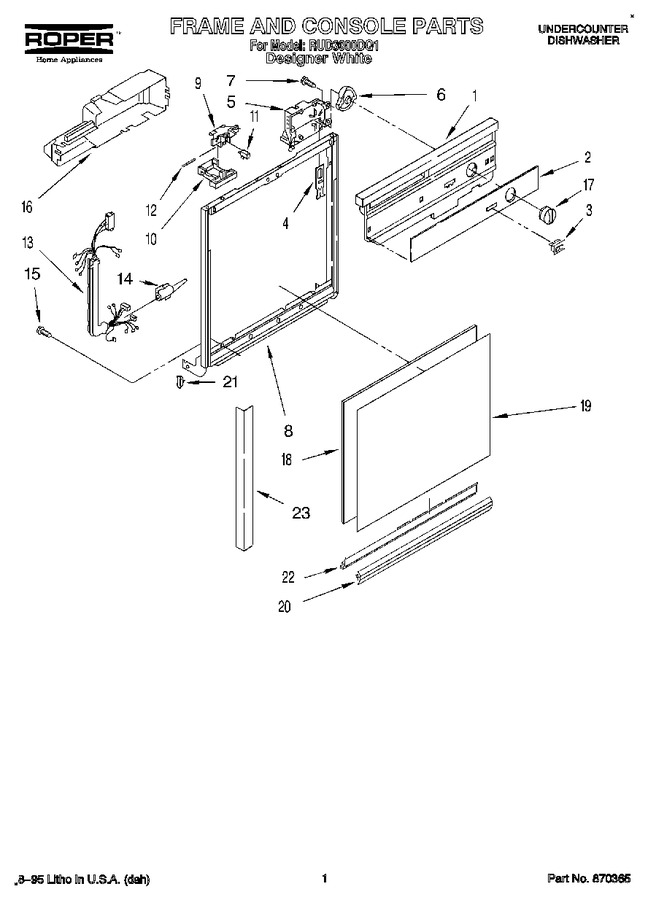

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Spray Arm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369607		Console (also Order Item 2)		Appelez-nous	-
2	3375648		Insert, Console		Appelez-nous	-
3	WP4314961		Switch, Rocker   (Replaces: 3369612)				$ 89.48
4	3368997		Follower, Cam				$ 35.20
5	3373590		Timer		Appelez-nous	-
6	WP8271510		Cam   (Replaces: 3375140)				$ 8.11
7	WP304231		Screw, 8-16 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 7.75
8	3374711		Door Frame (includes Item 22)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 66.11
10	WP3368954		Lever, Latch   (Replaces: 3369573)				$ 8.12
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3373593		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 6.74
16	3368964		Cover, Timer		Appelez-nous	-
17	3369611		Knob, Timer		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	3371716		+front Panel (white)				$ 49.13
20	3374011		Retainer, Panel				$ 59.30
21	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 10.49
22	WP3374716		Channel, Retainer (also Order Item 20)   (Replaces: 3374716)				$ 100.22
23	3371194		Trim (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
