SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Spray Arm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

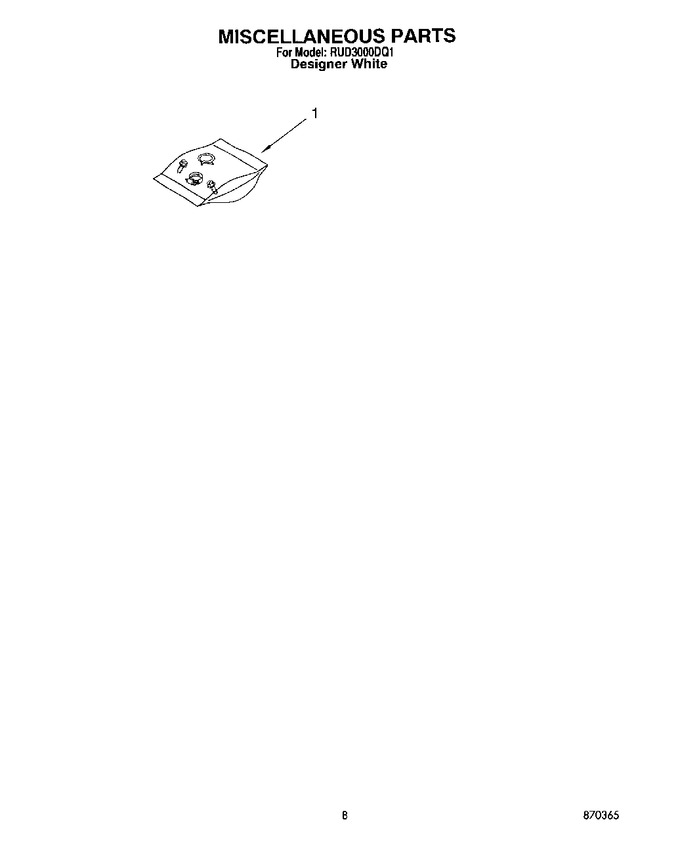

1	3369816		Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps				$ 34.93
	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 48.32
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4317925		Side Panel Kit (white)		Appelez-nous	-
	4317926		Avocado		Appelez-nous	-
	4317927		Gold		Appelez-nous	-
	4317929		Side Panel Kit: (almond)		Appelez-nous	-
	4317930		Toast		Appelez-nous	-
	4317931		Platinum		Appelez-nous	-
	4318050		Door Spring Kit (heavy Duty)				$ 23.68
	285006		Paint, Spray 13 Oz. (black)				$ 59.89
	350942		Primer White				$ 94.14
	978883		Almond (uncut)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	799340		Black (uncut)		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 38.83
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	LIT3369679		Instructions, Installation		Appelez-nous	-
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
	LIT3373485		Energy Guide		Appelez-nous	-
	LIT3376809		Guide, Use & Care		Appelez-nous	-
	LIT3373592		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
