SELECT A DIAGRAM

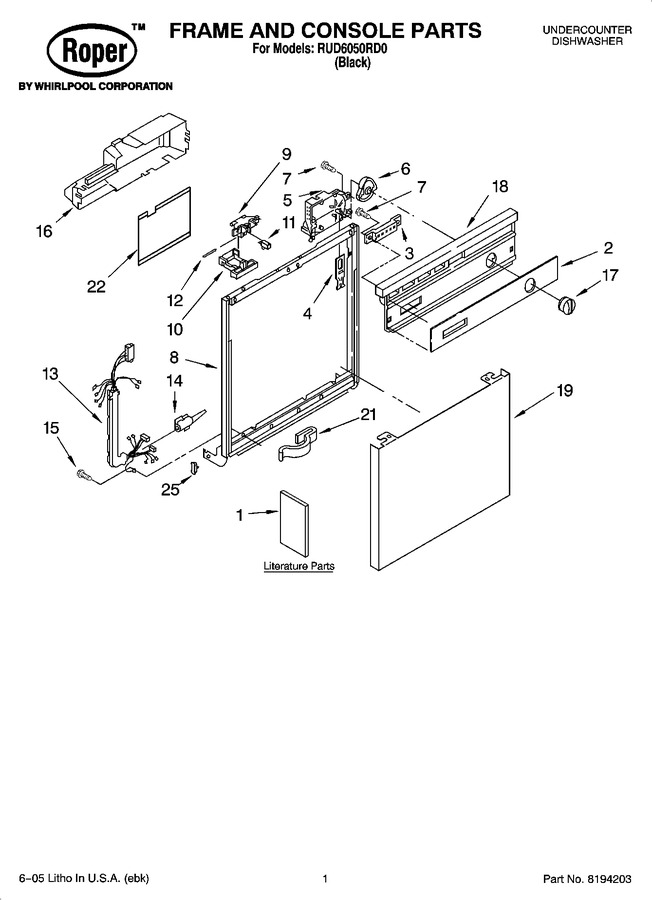

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Motor Parts


05 - Upper Dishrack And Water Feed Parts


06 - Lower Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8275138		Label, Wiring Diagram		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
1	3385966		Guide, Energy		Appelez-nous	-
1	3385961		Guide, Use & Care		Appelez-nous	-
2	3385976		Insert, Console (black)		Appelez-nous	-
3	8269369		Switch, 7 Button		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535371		Timer   (Replaces: 8535371)				$ 399.45
6	3378124		Cam				$ 5.75
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8275126		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8269526		Cover, Timer		Appelez-nous	-
17	8275308		Knob, Timer (black)				$ 75.05
18	8575220		Console (includes Item 2) (black)		Appelez-nous	-
19	8537074		Panel, Front		Appelez-nous	-
21	WP3400935		Clip, Harness   (Replaces: 3400935)				$ 10.20
22	3379671		Shield, Control Cover		Appelez-nous	-
25	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01

    View Diagram in Separate Window       Print Part List
