01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Motor Parts


05 - Upper Dishrack And Water Feed Parts

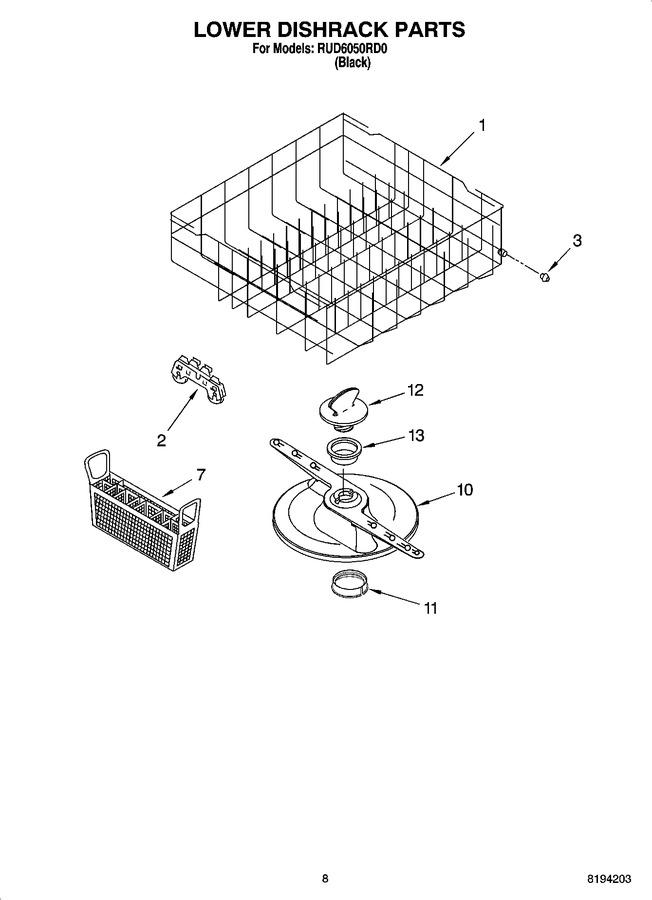

06 - Lower Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10161215		Dishrack, Lower   (Replaces: 8539225)				$ 198.12
2	WP8268645		Wheel & Transport Assembly   (Replaces: 8268645)			Immediately	$ 62.31
3	WP3385142		Bumper, Dishrack   (Replaces: 3385142)				$ 94.82
7	WP8268866		Silverware Basket Assembly   (Replaces: 8268866)			Immediately	$ 84.18
10	WP8268874		Sprayarm, Lower   (Replaces: 8268874)				$ 127.32
11	WP3376846		Seal, Lower Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
12	WP8268873		Nut, Sprayarm   (Replaces: 8268873)			Immediately	$ 7.57
13	WP9742946		Bearing, Radial   (Replaces: 9742946)			Immediately	$ 26.80
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	N/A		Door Spring Kit:		Appelez-nous	-
	4318050		Heavy Duty				$ 23.68
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
	978883		Paint, Touch-up (1 Qt.) (almond (uncut))		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	799340		Paint, Touch-up (1 Qt.) (black (uncut))		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
	4317925		Side Panel Kits (white)		Appelez-nous	-
	4317929		Side Panel Kits (almond)		Appelez-nous	-
