View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Rack Parts

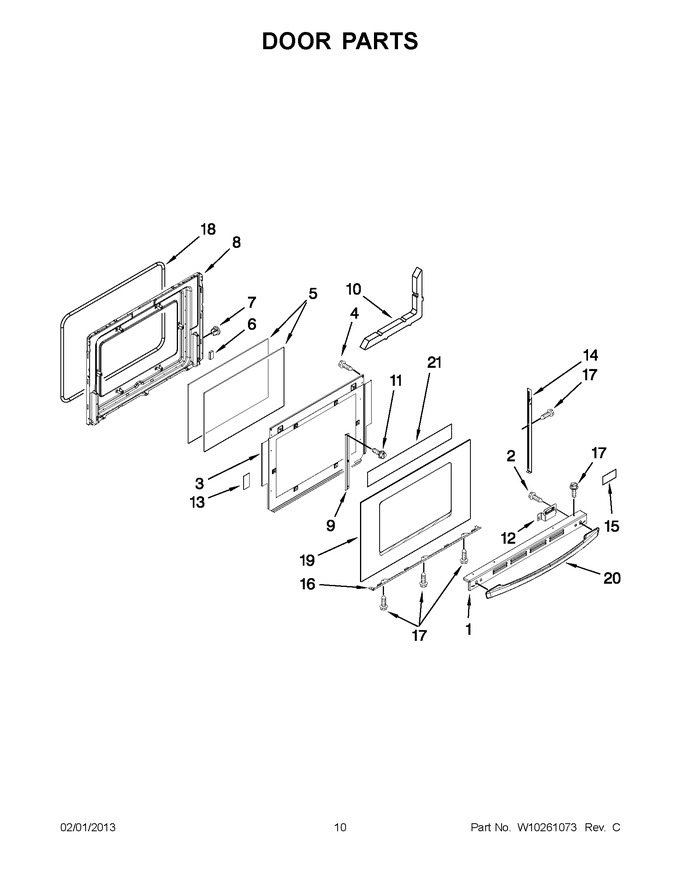

05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-70 | Trim, Door Top (black) |
|
$ 96.37 | |||||
| 1 | 3608F141-71 | Trim, Door Top (white) |
|
$ 98.12 | |||||
| 2 | WP74006515 | Screw (Replaces: 7101P544-60) |
|
$ 7.96 | |||||
| 3 | 3601F373-51 | Baffle, Oven Door Window |
|
$ 256.44 | |||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 5 | 74003645 | Glass, Inner (Replaces: 7902P436-60) |
|
Immediately | $ 201.23 | ||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.95 | |||||
| 7 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 10.57 | ||||
| 8 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 9 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Oven Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 12 | 3801F831-45 | Bracket, Handle (right) |
|
$ 20.13 | |||||
| 12 | 3801F832-45 | Bracket, Handle (left) |
|
$ 20.07 | |||||
| 13 | WP74004224 | Tape (Replaces: 8270P139-60) |
|
$ 11.06 | |||||
| 14 | 3608F117-70 | Trim, Door Side (black (left Hand)) |
|
$ 49.73 | |||||
| 14 | WP3608F116-71 | Trim, Door Side (white (right Hand)) (Replaces: 3608F116-71) |
|
$ 117.61 | |||||
| 14 | WP3608F117-71 | Trim, Door Side (white (left Hand)) (Replaces: 3608F117-71) |
|
$ 117.00 | |||||
| 14 | 3608F116-70 | Trim, Door Side (black (right Hand)) |
|
$ 49.75 | |||||
| 15 | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 15 | W11178521 | Badge (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 16 | 3807F708-70 | Trim, Door Bottom (black) |
|
$ 63.97 | |||||
| 16 | WP3807F708-71 | Trim, Door Bottom (white) (Replaces: 3807F708-71) |
|
$ 152.07 | |||||
| 17 | WP98008544 | Screw, Trim (white) (Replaces: 7101P636-60) |
|
$ 12.48 | |||||
| 17 | W10828565 | Screw, Trim (black) (Replaces: 7101P635-60) |
|
$ 7.07 | |||||
| 18 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 92.59 | ||||
| 19 | 7902P814-60 | Glass, Door (white) |
|
- | |||||
| 19 | 7902P815-60 | Glass, Door (black) |
|
- | |||||
| 20 | 7701P463-60 | Handle, Door (white) |
|
$ 92.43 | |||||
| 20 | 7701P462-60 | Handle, Door (black) |
|
$ 94.25 | |||||
| 21 | 8270P133-60 | Tape, Foil |
|
- |
