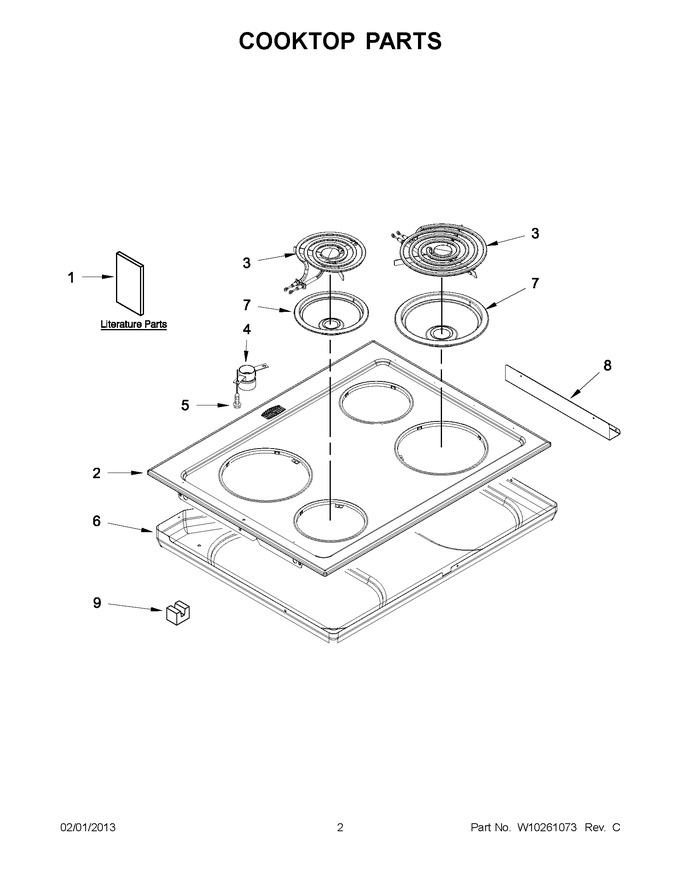

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8119P448-60 | Wiring Diagram |
|
- | |||||
| 1 | W10430947 | Install, Instruct |
|
- | |||||
| 1 | W10432290 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | 2002M200-81 | Cooktop (white) (Replaces: 2002W200-81) |
|
- | |||||
| 2 | 2002M200-09 | Cooktop (black) (Replaces: 2002W200-09) |
|
- | |||||
| 3 | W10345409 | Element (2100w) (left Rear & Right Front) |
|
$ 140.30 | |||||
| 3 | WPW10345407 | Element (1250w) (left Front & Right Rear) (Replaces: W10345407) |
|
Immediately | $ 165.42 | ||||
| 4 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 5 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 6 | 4011F371-80 | Bottom, Burner Box |
|
- | |||||
| 7 | WPW10196405 | Bowl, Drip (large) (Replaces: 7725P054-60) |
|
Immediately | $ 17.29 | ||||
| 7 | WPW10196406 | Bowl, Drip (small) (Replaces: 7725P053-60) |
|
Immediately | $ 13.39 | ||||
| 8 | 3801F881-51 | Bracket, Burner Box |
|
- | |||||
| 9 | 8255P412-60 | Block, Element Support |
|
$ 31.52 |
