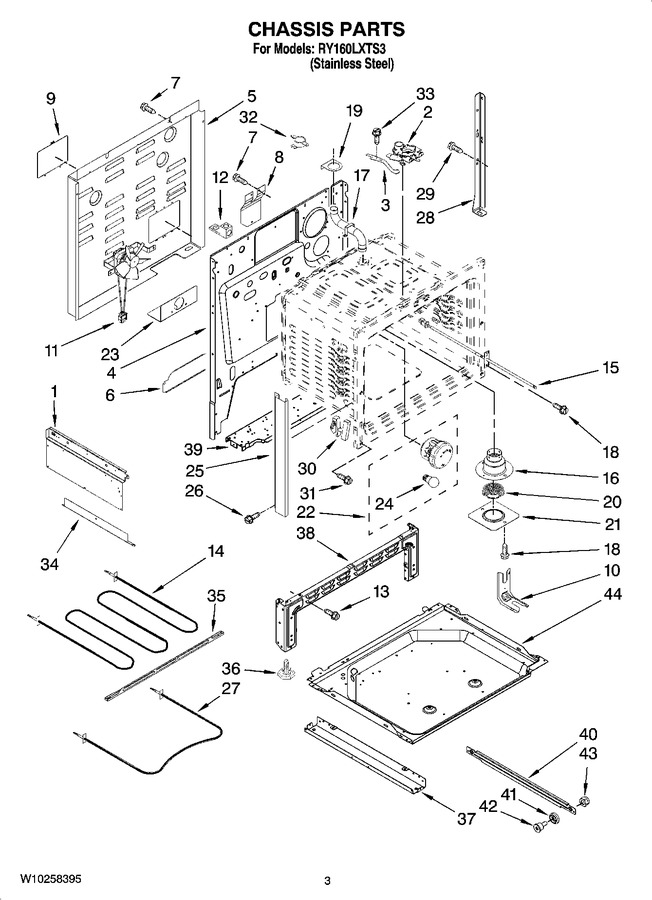

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F201-51		Panel, Shield (left)				$ 32.51
1	2618F206-51		Panel, Shield (right)				$ 135.68
2	8002P093-60		Latch Assembly		Appelez-nous	-
3	8009P031-60		Lever, Lock				$ 6.00
4	W10166282		Main Back		Appelez-nous	-
5	4005F810-51		Cover, Main Wire				$ 248.98
6	3826F066-51		Extension, Back				$ 7.82
7	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.82
8	7003P101-60		Insulator, Cord				$ 15.60
9	4005F612-51		Panel, Access				$ 46.13
10	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
11	7427P218-60		Fan, Cooling		Appelez-nous	-
12	WPW10281322		Block, Bare Wire   (Replaces: 7401P157-60)				$ 8.45
13	WP74003976		Screw W/ Washer   (Replaces: 7101P124-60)				$ 7.19
14	WP7406P218-60		Element, Broil   (Replaces: 74003040)			Immediately	$ 169.20
15	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 43.94
16	8026P096-60		Tube, Vent Lower		Appelez-nous	-
17	8026P085-60		Tube, Vent Upper		Appelez-nous	-
18	WP7101P434-60		Screw (4)   (Replaces: 7101P434-60)				$ 6.95
19	3605F345-51		Holder, Vent Tube				$ 7.82
20	8034P008-60		Smoke, Eliminator				$ 25.43
21	W10165724		Plate, Smoke Elm.		Appelez-nous	-
22	WP7407P182-60		Light Assembly   (Replaces: 7407P182-60)			Immediately	$ 73.44
23	W10190166		Bracket, Pwr Supply   (Replaces: 3801F574-51)				$ 9.24
24	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
25	3608F138-70		Trim, Side				$ 66.28
26	WP74003976		Screw, Shoulder (4)   (Replaces: 7101P500-60)				$ 7.19
27	WPW10310274		Element, Bake   (Replaces: 7406P439-60)			Immediately	$ 120.66
28	3807F732-51		Support, Oven Rear		Appelez-nous	-
29	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
30	74011142		Hinge (2)   (Replaces: 7106P141-60)			Immediately	$ 120.24
31	WP4159193		Screw, Hinge (4)   (Replaces: 7101P282-60)				$ 4.77
32	WP7450P034-60		Switch, Hi-limit   (Replaces: 7450P034-60)				$ 217.58
33	74003975		Screw, Lever (2)   (Replaces: 7101P375-60)				$ 13.36
34	3826F064-51		Extention, Shield		Appelez-nous	-
35	3807F494-45		Support, Element		Appelez-nous	-
36	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.19
37	4020W035-80		Pedestal, Bottom				$ 112.82
38	4020F036-80		Pedestal, Front				$ 31.23
39	3807F640-51		Support				$ 31.03
40	3406F032-51		Runner, Drawer (2)		Appelez-nous	-
41	WP74004078		Roller Drawer (2)   (Replaces: 8014P022-60)			Immediately	$ 11.89
42	7118P032-60		Shaft, Roller (2)		Appelez-nous	-
43	7103P190-60		Nut, Lock (2)		Appelez-nous	-
44	3804F231-51		Retainer, Bottom				$ 147.45
	W10165725		Insulation, Back				$ 74.98
	7002P471-60		Insulation, Wrap		Appelez-nous	-
	7002P456-60		Insulation, Oven Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
