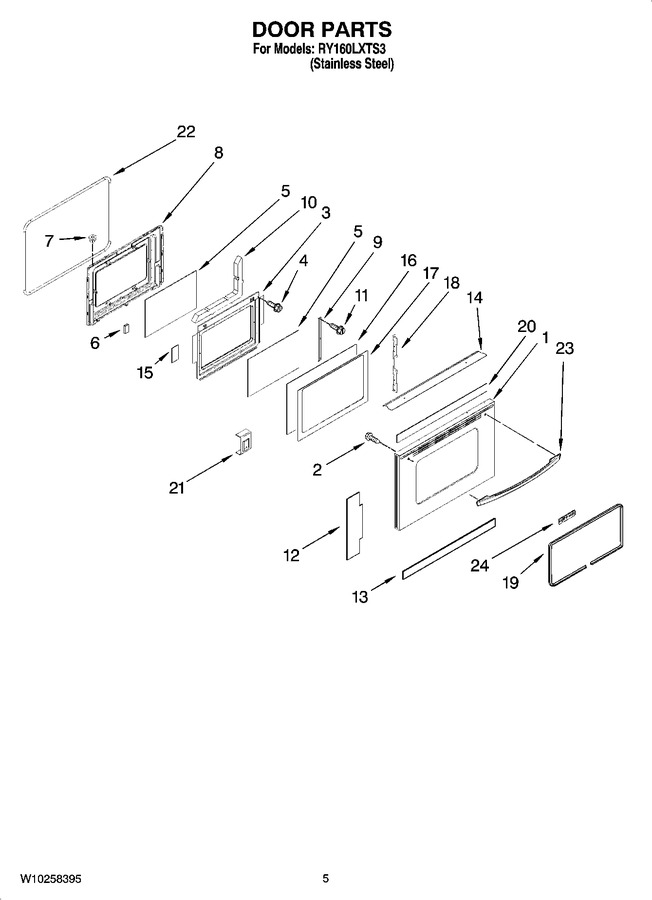

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168887 | Panel, Door (ss) |
|
- | |||||
| 2 | WP74006515 | Screw, Handle (2) (Replaces: 7101P544-60) |
|
$ 8.10 | |||||
| 3 | 3601F373-51 | Baffel, Retainer |
|
$ 271.36 | |||||
| 4 | W11233072 | Screw 8ab 1/2 (Replaces: 7101P388-60) |
|
Immediately | $ 14.02 | ||||
| 5 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 10.53 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 11.01 | ||||
| 8 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 9 | 3801F886-51 | Bracket, Glass (2) |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.82 | ||||
| 12 | 74011048 | Insulation, Foil (Replaces: 7002P463-60) |
|
$ 79.70 | |||||
| 13 | WP74010043 | Insulation, Door (Replaces: 7002P427-60) |
|
$ 74.64 | |||||
| 14 | 3604F418-51 | Shield, Door |
|
$ 77.46 | |||||
| 15 | WP74004224 | Tape, White (Replaces: 8270P139-60) |
|
$ 11.70 | |||||
| 16 | 7802P768-60 | Glass, Coated |
|
- | |||||
| 17 | 7902P468-60 | Glass, Inner Clear |
|
- | |||||
| 18 | 3804F293-45 | Retainer, Glass |
|
$ 16.56 | |||||
| 19 | WP74009029 | Gasket, Window (Replaces: 7201P141-60) |
|
Immediately | $ 161.36 | ||||
| 20 | W10168886 | Tape, Protective |
|
- | |||||
| 21 | 7112P034-60 | Clip, Glass (2) |
|
- | |||||
| 22 | WPW10162384 | Seal, Door (Replaces: 7201P046-60) |
|
Immediately | $ 86.23 | ||||
| 23 | 7701P462-60 | Handle, Door |
|
$ 94.25 | |||||
| 24 | 14272883 | Nameplate, Logo |
|
- |
