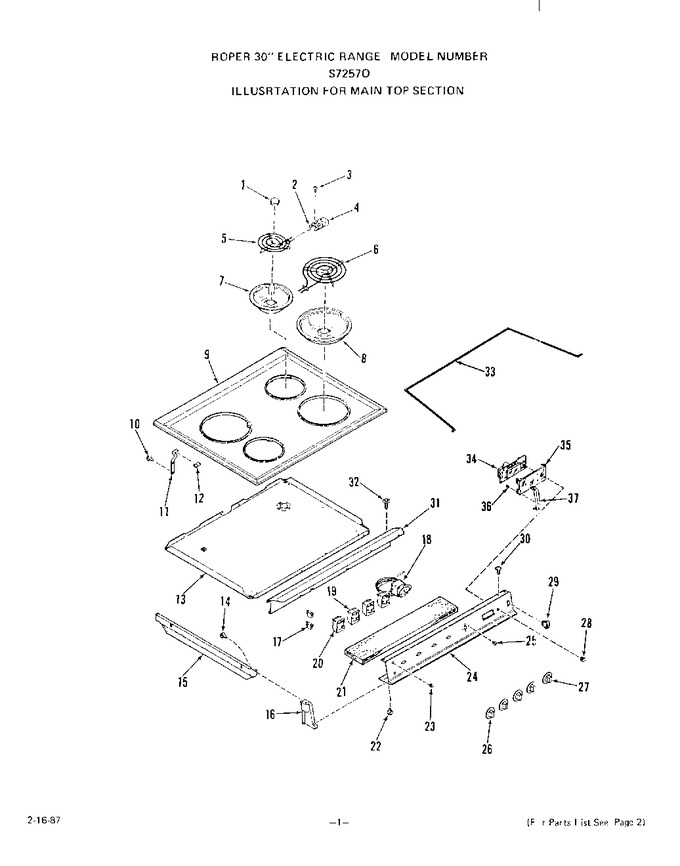

01 - Main Top


02 - Body


03 - Lit/optional 4`` Backsplash


04 - Oven Door


05 - Wire Harness , Backsplash , Gridd


06 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion		Appelez-nous	-
2	318872		Clip-terminal Block		Appelez-nous	-
3	299632		Screw 7-32x5/16``		Appelez-nous	-
4	330031		Block-terminal W/wires   (Replaces: 318960)			Immediately	$ 19.92
5	325507		Element-surface 6``		Appelez-nous	-
6	325503		Element-surface 8``		Appelez-nous	-
7	WPW10196406		Bowl-burner 6``   (Replaces: 296481)			Immediately	$ 13.80
8	WPW10196405		Bowl-burner 8``   (Replaces: 304969)			Immediately	$ 17.29
9	336480		Chrome		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	334844		Left		Appelez-nous	-
11	334843		Right		Appelez-nous	-
12	335161		Bracket-hinge		Appelez-nous	-
13	330389		Bottom-burner Box		Appelez-nous	-
14	327320		Screw 10-16x7/16``		Appelez-nous	-
15	336365		Extension-burner Box Side		Appelez-nous	-
16	330344		Left		Appelez-nous	-
16	330345		Right		Appelez-nous	-
17	331716		Surface		Appelez-nous	-
17	331717		Oven		Appelez-nous	-
18	326322		Thermostat		Appelez-nous	-
19	5500-200		Switch-infinite (for 8`` Element)   (Replaces: 320946)			Immediately	$ 60.94
20	320945		Switch-infinite (for 6`` Element)		Appelez-nous	-
21	331071		Insulation		Appelez-nous	-
22	316849		Screw-10-32x1/2``		Appelez-nous	-
23	331705		Lens-indicator Light		Appelez-nous	-
24	336356		Panel-control		Appelez-nous	-
25	78565		Screw 8-32x3/16``		Appelez-nous	-
26	336379		Knob-infinite		Appelez-nous	-
27	336378		Knob-thermostat		Appelez-nous	-
28	334961		Knob-clock		Appelez-nous	-
29	334649		Switch-oven Light		Appelez-nous	-
30	316849		Screw-10-32x1/2``		Appelez-nous	-
31	330726		Cover-wire		Appelez-nous	-
32	327320		Screw 10-16x7/16``		Appelez-nous	-
33	336079		Rod-main Top Support		Appelez-nous	-
34	335616		Clock		Appelez-nous	-
35	336943		Clock Lens		Appelez-nous	-
36	300000		Screw 6-32 X 5/16``		Appelez-nous	-
37	336354		Bracket-clock		Appelez-nous	-
