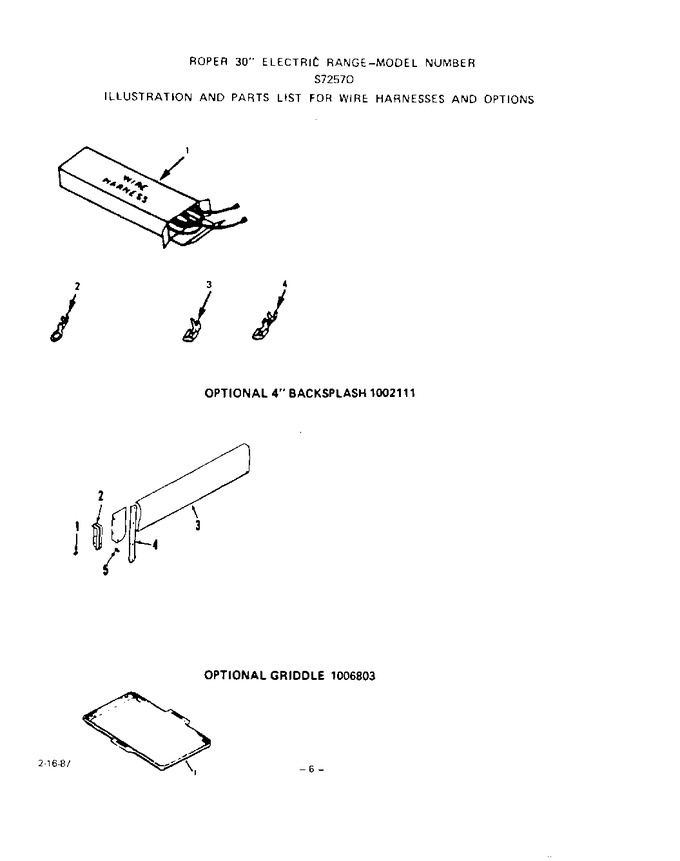

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Main Top
02 - Body
03 - Lit/optional 4`` Backsplash
04 - Oven Door
05 - Wire Harness , Backsplash , Gridd
06 - Wire Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 331036 | Main Top |
|
- | |||||
| 1 | 331037 | Main |
|
- | |||||
| 1 | 295268 | Screw Tc 6-32x3/8`` |
|
- | |||||
| 1 | 309844 | Set-on Griddle |
|
- | |||||
| 2 | 238387 | Eyelet Terminal |
|
- | |||||
| 2 | 330339 | Cap-end |
|
- | |||||
| 3 | 238387 | Flag Terminal |
|
- | |||||
| 3 | 331387 | Backsplash |
|
- | |||||
| 4 | 238393 | Faston Terminal |
|
- | |||||
| 4 | 330331 | Support Backsplash |
|
- | |||||
| 5 | 331389 | Xsheet Instruction |
|
- | |||||
| 5 | 327320 | Screw St 10-16x7/16`` |
|
- |
