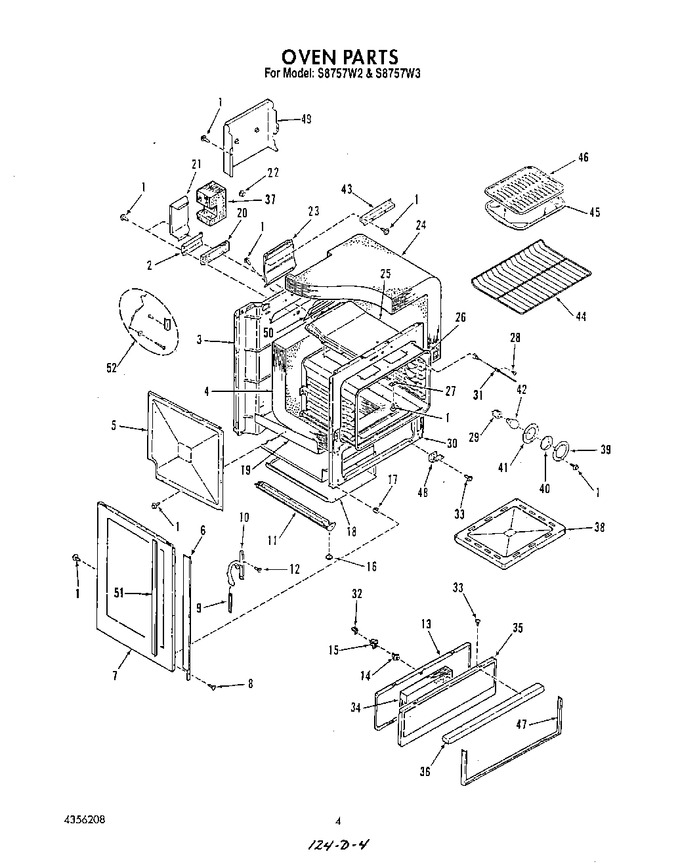

SELECT A DIAGRAM

02 - Cooktop , Literature


03 - Oven


04 - Door Lock


05 - Cooktop Burner


06 - Broiler And Oven Burner


07 - Oven Door


08 - Optional Backsplash , Optional Grid


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
2	4335392		Shield, Wire		Appelez-nous	-
3	4342679		Back		Appelez-nous	-
4	4354840		Insulation, Back And Bottom		Appelez-nous	-
5	4335884		Insulation Retainer (lt/rt)		Appelez-nous	-
6	4336263		Trim, Side (left)		Appelez-nous	-
6	4336264		Trim, Side (right)		Appelez-nous	-
7	4343065		Side Body, Lt/rt		Appelez-nous	-
8	4331822		Screw No.8x5/8		Appelez-nous	-
9	4342931		Door Spring, Lt/rt		Appelez-nous	-
10	4336784		Door Hinge (left)				$ 80.99
10	4336783		Door Hinge (right)				$ 44.64
11	4342828		Base W/levelers, Lt/rt		Appelez-nous	-
12	4336631		Screw		Appelez-nous	-
13	4343067		Lining, Storage Door		Appelez-nous	-
14	4337419		Strike, Door		Appelez-nous	-
15	4337418		Catch, Door		Appelez-nous	-
16	4334834		Leveler Leg (4)		Appelez-nous	-
17	4331381		Expansion Nut (4)		Appelez-nous	-
18	4335718		Compartment, Storage		Appelez-nous	-
19	4336507		Retainer, Lower Insulation		Appelez-nous	-
20	4354868		Insulation		Appelez-nous	-
21	4336373		Wire Shield		Appelez-nous	-
22	4334164		Bushing		Appelez-nous	-
23	4336462		Flue Deflector		Appelez-nous	-
24	4335963		Insulation, Top And Sides (1 Pc)		Appelez-nous	-
25	4335382		Flue Box		Appelez-nous	-
26	4337958		Oven Cavity		Appelez-nous	-
27	4329206		Cover		Appelez-nous	-
28	4324445		Screw		Appelez-nous	-
29	W10856866		Holder, Oven Light   (Replaces: 4323560)				$ 6.80
30	4337743		Front Frame		Appelez-nous	-
31	4337170		Sensor		Appelez-nous	-
32	4337417		Bracket, Catch		Appelez-nous	-
33	4332521		Screw No.10-32x1/2		Appelez-nous	-
34	4328778		Insulation		Appelez-nous	-
35	4342632		Panel, Front Storage Door		Appelez-nous	-
36	4336754		Handle, Storage Door		Appelez-nous	-
37	4354948		Insulation		Appelez-nous	-
38	4337461		Bottom, Oven		Appelez-nous	-
39	4324482		Retainer, Lens		Appelez-nous	-
40	4324415		Lens, Oven Light		Appelez-nous	-
41	4324481		Gasket, Lens		Appelez-nous	-
42	8009		Bulb, Oven Light   (Replaces: 4338591)			Immediately	$ 16.80
43	4337235		Support, Flue Deflector		Appelez-nous	-
44	4334809		Oven Rack (2)				$ 54.59
45	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
46	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
47	4342576		Frame, Storage Door Panel		Appelez-nous	-
48	4337416		Hinge, Door		Appelez-nous	-
49	4337489		Shield, Flue Deflector		Appelez-nous	-
50	4337789		Insulation, Flue		Appelez-nous	-
51	4336565		Extension, Side Trim		Appelez-nous	-
52	4343111		Stability Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
