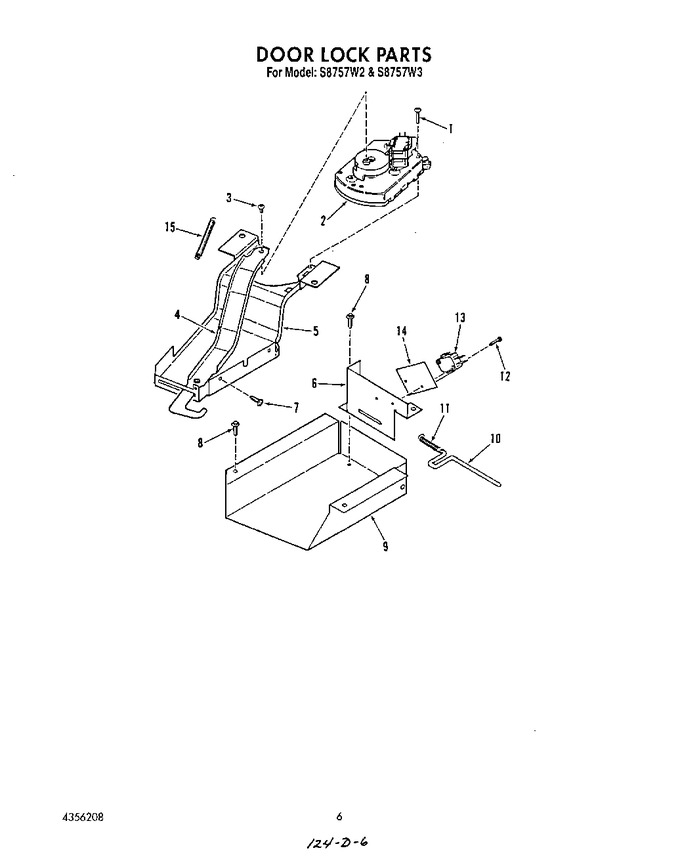

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4350821		Screw No.8-32x55/64		Appelez-nous	-
2	4338294		Lock Motor Asm.		Appelez-nous	-
3	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
4	4338225		Lock Lever Asm.		Appelez-nous	-
5	4338210		Door Lock Plate		Appelez-nous	-
6	4338145		Bracket, Switch		Appelez-nous	-
7	4332521		Screw No.10-32x1/2		Appelez-nous	-
8	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
9	4338068		Lock Box		Appelez-nous	-
10	4338149		Actuator Pin		Appelez-nous	-
11	4338171		Spring		Appelez-nous	-
12	4343068		Screw		Appelez-nous	-
13	4337116		Micro Switch		Appelez-nous	-
14	4335973		Insulator		Appelez-nous	-
15	4338207		Lock Spring		Appelez-nous	-
