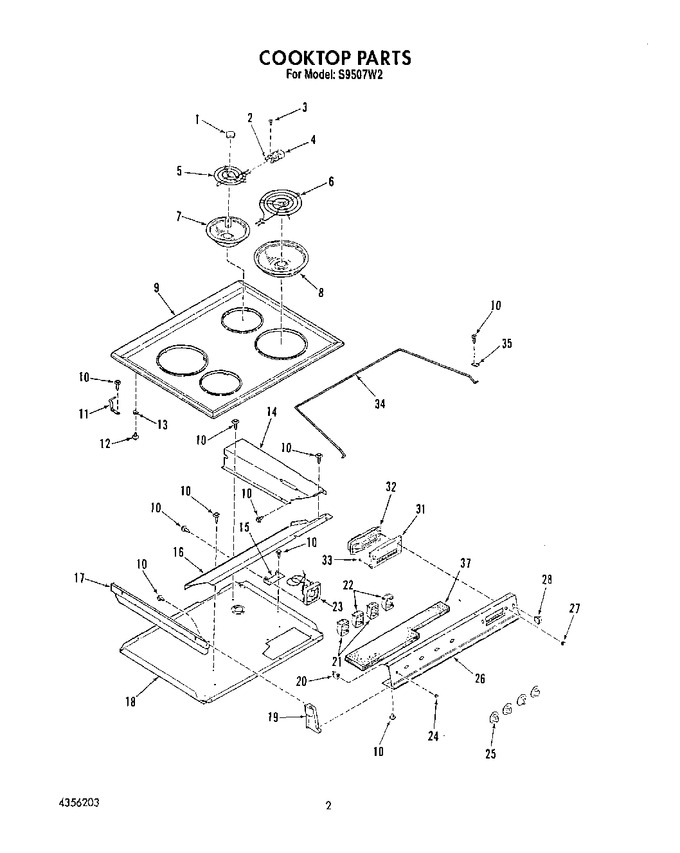

02 - Cooktop, Lit/optional
03 - Optional Porcelain Pan And Ring
04 - Oven
05 - Door Lock
06 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4332691 | Medallion |
|
- | |||||
| 2 | WP4332752 | Clip, Terminal Block (Replaces: 4332752) |
|
$ 7.18 | |||||
| 3 | 4327985 | Screw, No.7-32 X 5/16 |
|
- | |||||
| 4 | 330031 | Terminal Block & Wires (Replaces: 4342636) |
|
Immediately | $ 17.93 | ||||
| 5 | WPY04100165 | 6`` Surface Element (lt Frt/rt Rr) (Replaces: 4334592) |
|
Immediately | $ 56.92 | ||||
| 6 | WP3177565 | 8`` Surface Element (lt Rt/rt Frt) (Replaces: 4334589) |
|
$ 164.32 | |||||
| 7 | WPW10196406 | 6`` Burner Bowl (Replaces: 4327709) |
|
Immediately | $ 12.05 | ||||
| 8 | W10196405RW | 8`` Burner Bowl (Replaces: 4329225) |
|
Immediately | $ 19.64 | ||||
| 9 | 4337781 | Cooktop (chrome) |
|
- | |||||
| 9 | 4337352 | Cooktop (white) |
|
- | |||||
| 9 | 4337353 | Cooktop (almond) |
|
- | |||||
| 10 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 11 | 4337342 | Hinge, Cooktop (right) |
|
- | |||||
| 11 | 4337343 | Hinge, Cooktop (left) |
|
- | |||||
| 12 | 4326322 | Screw, No.10-32 X 5/16 |
|
- | |||||
| 13 | 4337447 | Bracket, Hinge |
|
- | |||||
| 14 | 4338069 | Duct, Fan |
|
- | |||||
| 15 | 4338067 | Bracket, Fan |
|
- | |||||
| 16 | 4338626 | Wire Cover |
|
- | |||||
| 17 | 4337752 | Extension, Side |
|
- | |||||
| 18 | 4338543 | Bottom, Burner Box |
|
- | |||||
| 19 | 4336267 | End Cap (right) |
|
- | |||||
| 19 | 4336266 | End Cap (left) |
|
- | |||||
| 20 | 4336634 | Indicator Light |
|
- | |||||
| 21 | W10900107 | Infinite Control (Replaces: 4343033) |
|
Immediately | $ 51.87 | ||||
| 22 | W10900107 | Infinite Control (Replaces: 4343034) |
|
Immediately | $ 51.87 | ||||
| 23 | 4337779 | Fan Asm |
|
- | |||||
| 24 | WP9750343 | Lens, Indicator Light (Replaces: 4336632) |
|
Immediately | $ 5.40 | ||||
| 25 | 4337760 | Knob, Infinite |
|
- | |||||
| 26 | 4343029 | Control Panel |
|
- | |||||
| 27 | 4338513 | Knob, Clock |
|
- | |||||
| 28 | WP4314961 | Switch, Oven Light (Replaces: 4337275) |
|
$ 84.56 | |||||
| 31 | 4342950 | Lens, Clock/oven |
|
$ 99.57 | |||||
| 32 | 4342969 | Control, Clock/oven |
|
- | |||||
| 33 | 4323476 | Screw, No.6-32 X 5/16 |
|
- | |||||
| 34 | 4337663 | Support-cooktop |
|
- | |||||
| 35 | 4338000 | Clamp |
|
- | |||||
| 37 | 4354961 | Insulation Bezel, Knob |
|
- | |||||
| 37 | 4356203 | Parts List |
|
- | |||||
| 37 | 4343026 | Use & Care Manual |
|
- | |||||
| 37 | 4348185 | Installation Guide |
|
- |
