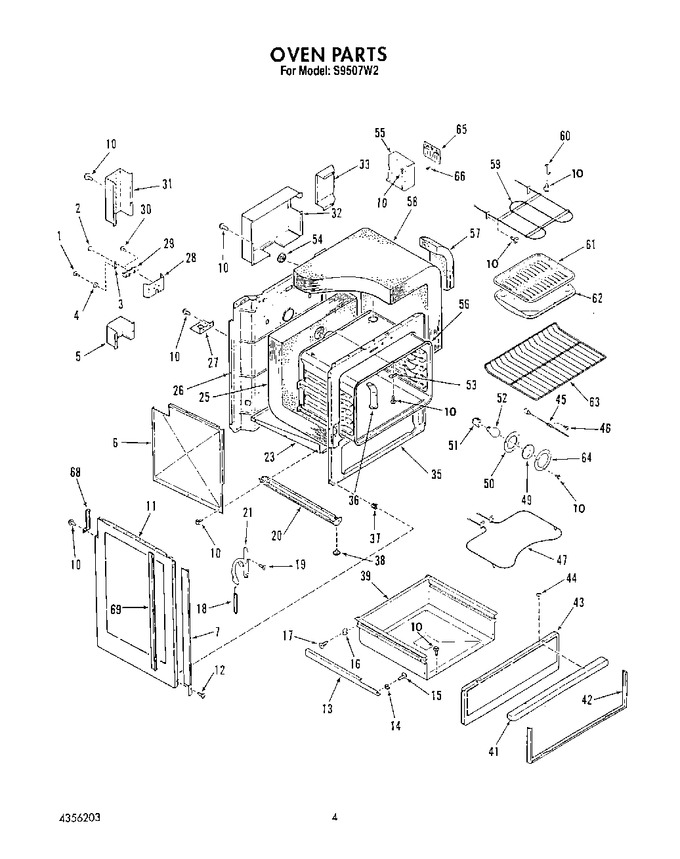

04 - Oven


05 - Door Lock


06 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4331573		Screw No.10-32x7/16		Appelez-nous	-
2	WP776338		Hex Nut No.10-32   (Replaces: 4338637)				$ 18.29
3	4335219		Strap, Ground		Appelez-nous	-
4	4327921		Washer		Appelez-nous	-
5	4335222		Wire Cover, Lower		Appelez-nous	-
6	4353951		Retainer, Insulation (lt/rt)		Appelez-nous	-
7	4336263		Trim, Side (left)		Appelez-nous	-
7	4336264		Trim, Side (right)		Appelez-nous	-
10	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
11	4343043		Side Panel (right)		Appelez-nous	-
11	4343042		Side Panel (left)		Appelez-nous	-
12	WP308685		Screw, No.10   (Replaces: 4335117)			Immediately	$ 7.08
13	4331092		Support, (lt/rt), Storage Drawer		Appelez-nous	-
14	4325732		Front Slide Block, Lt/rt		Appelez-nous	-
15	4327611		Screw, No.10-32 X 17/32		Appelez-nous	-
16	4325731		Rear Slide Block (lt/rt)		Appelez-nous	-
17	4323796		Screw, No.8-32 X 3/8		Appelez-nous	-
18	4342931		Spring, Oven Door (lt/rt)		Appelez-nous	-
19	4336631		Screw		Appelez-nous	-
20	4338262		Base W/levelers (lt/rt)		Appelez-nous	-
21	4336784		Hinge-oven Door (left)				$ 80.99
21	4336783		Hinge-oven Door (right)				$ 44.64
23	4353950		Retainer, Insulation, Bottom		Appelez-nous	-
25	4353609		Insulation-oven Bottom & Back, (1 Piece)		Appelez-nous	-
26	4337984		Rear Cover		Appelez-nous	-
27	4335223		Mounting Plate, Service		Appelez-nous	-
28	4335209		Insulation, Service Cord		Appelez-nous	-
29	WP8203546		Block, Junction   (Replaces: 4326821)			Immediately	$ 27.12
30	4331572		Screw, No.10-32x1		Appelez-nous	-
31	4336373		Wire Shield		Appelez-nous	-
32	4337981		Upper Wire Shield		Appelez-nous	-
33	4354798		Shield, Wire		Appelez-nous	-
35	4337758		Frame, Front		Appelez-nous	-
36	4336400		Vent Tube		Appelez-nous	-
37	4331381		Expansion Nut		Appelez-nous	-
38	4334834		Leg Leveler (4)		Appelez-nous	-
39	4327658		Drawer, Storage		Appelez-nous	-
41	4336754		Handle		Appelez-nous	-
42	4336752		Frame, Drawer		Appelez-nous	-
43	4337782		Panel, Drawer Front		Appelez-nous	-
44	4332521		Screw No.10-32x1/2		Appelez-nous	-
45	4337170		Sensor		Appelez-nous	-
46	4324445		Screw		Appelez-nous	-
47	4334928		Element, Bake (240 Volt)				$ 80.01
47	4334929		Bake Element (208 Volt (opt))		Appelez-nous	-
49	4324415		Lens, Oven Lamp		Appelez-nous	-
50	4324481		Seal, Lens		Appelez-nous	-
51	W10856866		Socket, Oven Lamp   (Replaces: 4343038)				$ 6.80
52	8009		Bulb, Oven Light   (Replaces: 4338591)			Immediately	$ 16.80
53	4329206		Cover		Appelez-nous	-
54	4337072		Snap Bushing		Appelez-nous	-
55	4337800		Relay Cover		Appelez-nous	-
56	4337959		Oven Cavity		Appelez-nous	-
57	4354262		Insulation (lt/rt)		Appelez-nous	-
58	4330229		Insulation-top & Sides (1 Piece)		Appelez-nous	-
59	WP4334925		Broil Element (208 Volt (opt))   (Replaces: 4337192)				$ 139.19
59	WP4334925		Element, Broil (240 Volt)   (Replaces: 4337191)				$ 139.19
60	4337249		Support, Broil Element		Appelez-nous	-
61	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
62	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
63	4334809		Oven Rack (2)				$ 54.59
64	4324482		Lens Retainer, Oven Light		Appelez-nous	-
65	4338265		Relay Board		Appelez-nous	-
66	4337387		Spacer, Relay Board		Appelez-nous	-
68	4337998		Filler, Side		Appelez-nous	-
69	4336565		Extension, Side Trim		Appelez-nous	-
