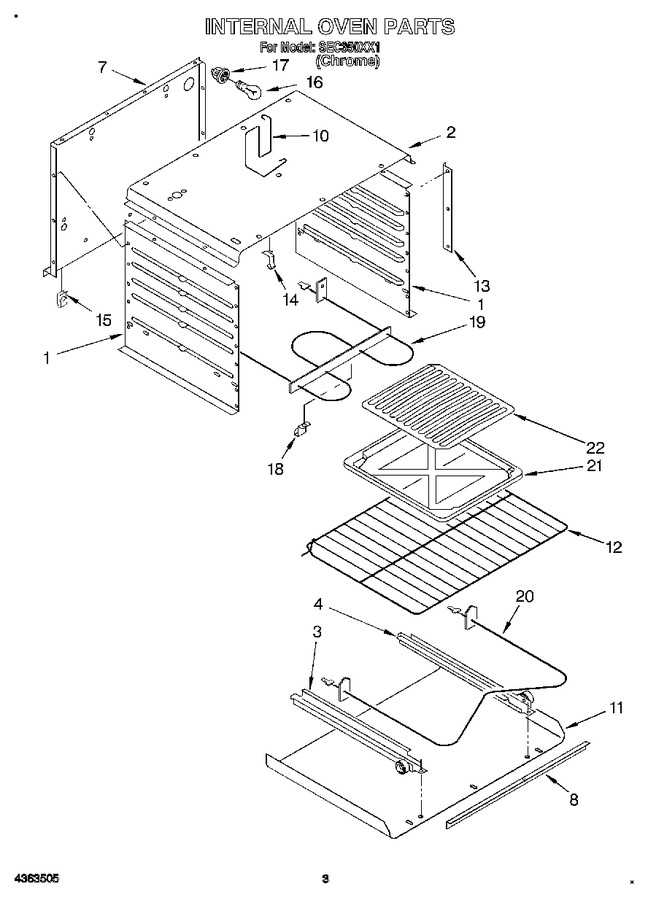

02 - Internal Oven
03 - Oven Door And Storage Drawer
04 - Cooktop
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4320452 | Screw |
|
- | |||||
| 1 | 4320662 | Screw |
|
- | |||||
| 1 | 4320729 | Liner, Oven Side (2) |
|
- | |||||
| 2 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 2 | 4315044 | Liner, Oven Top |
|
- | |||||
| 3 | 4320465 | Track, L.h. |
|
- | |||||
| 4 | 4315385 | Track, R.h. |
|
- | |||||
| 7 | WP308685 | Screw (Replaces: 4157117) |
|
Immediately | $ 7.08 | ||||
| 7 | 4314989 | Liner, Oven Back |
|
- | |||||
| 8 | 4320662 | Screw |
|
- | |||||
| 8 | 4315213 | Support, Oven Bottom |
|
- | |||||
| 10 | 4320570 | Cage, Light |
|
- | |||||
| 11 | 4363537 | Screw |
|
- | |||||
| 11 | 4320773 | Bottom, Oven |
|
- | |||||
| 11 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 12 | 4320804 | Rack, Oven (2) |
|
- | |||||
| 13 | 4157328 | Support, Liner (2) |
|
- | |||||
| 14 | 98005642 | Clip, Thermo Bulb (Replaces: 4157329) |
|
Immediately | $ 78.37 | ||||
| 15 | 4157330 | Clip, Speed |
|
- | |||||
| 16 | 8009 | Bulb (Replaces: 4157019) |
|
Immediately | $ 17.51 | ||||
| 17 | 4157020 | Receptacle |
|
- | |||||
| 18 | 4157967 | Support, Broil Element |
|
- | |||||
| 18 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 19 | 4157977 | Element, Broiler |
|
- | |||||
| 19 | 4320577 | Screw |
|
- | |||||
| 20 | WP4314958 | Element, Bake (Replaces: 4314958) |
|
$ 128.67 | |||||
| 20 | 4320577 | Screw |
|
- | |||||
| 21 | 4396923 | Pan, Broiler (Replaces: 4315095) |
|
Immediately | $ 54.64 | ||||
| 22 | 4315094 | Grid |
|
- |
