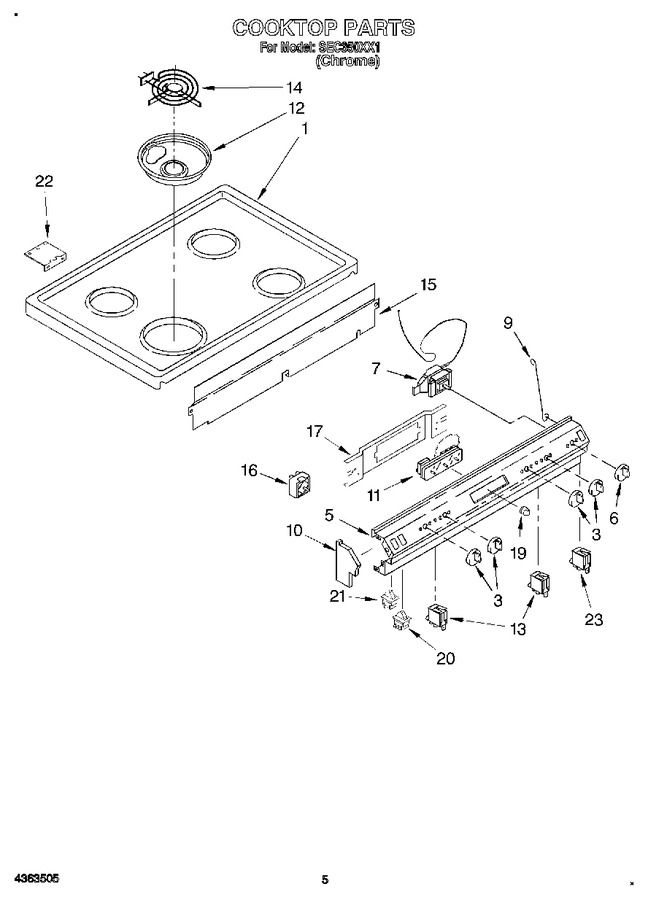

04 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363212		Cooktop, Chrome		Appelez-nous	-
3	4320345		Knob, Burner (4)		Appelez-nous	-
5	4321162		Panel, Manifold		Appelez-nous	-
6	4320346		Knob, Thermostat		Appelez-nous	-
7	4314949		Thermostat		Appelez-nous	-
9	4157010		Rod, Support		Appelez-nous	-
10	4314981		Endcap (l.h.)		Appelez-nous	-
10	4314980		Endcap (r.h.)		Appelez-nous	-
11	4321163		Clock		Appelez-nous	-
12	WPW10196406		Bowl, Chrome (6``)   (Replaces: 4157961)			Immediately	$ 12.42
12	W10196405RW		Bowl, Chrome (8``)   (Replaces: 4157960)			Immediately	$ 19.64
13	4315030		Light, Indicator (3)		Appelez-nous	-
14	4315619		Unit, Surface (6``)		Appelez-nous	-
14	4315620		Unit, Surface (8``)		Appelez-nous	-
15	4157018		Screw		Appelez-nous	-
15	4315214		Cover, Switch		Appelez-nous	-
16	4320604		Screw		Appelez-nous	-
16	W10900107		Switch, Infinite   (Replaces: 4314945)			Immediately	$ 51.87
17	4363064		Mounting Bracket		Appelez-nous	-
19	4363358		Knob, Clock (3)		Appelez-nous	-
20	WP4314961		Switch, Oven Light   (Replaces: 4314961)				$ 84.56
21	WP4314961		Switch, Rocker   (Replaces: 4314962)				$ 84.56
22	4157083		Hinge, Cooktop		Appelez-nous	-
23	4314996		Light, Indicator		Appelez-nous	-
