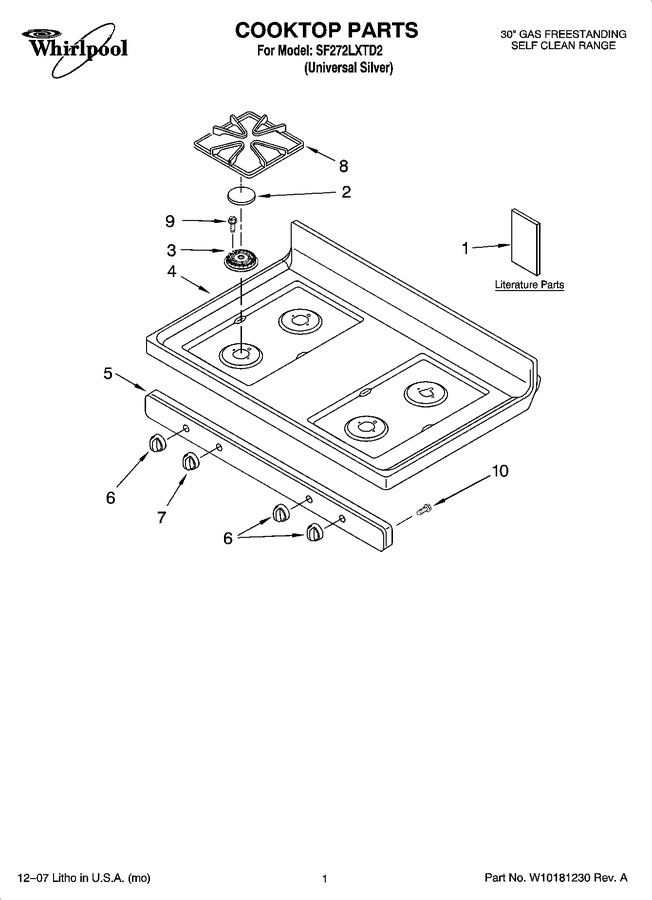

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762998 | Installation Instructions |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 1 | W10162213 | Owners Manual |
|
- | |||||
| 1 | W10116295 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WP3191901 | Cap, Burner (lr - Rf) (Replaces: 3191901) |
|
$ 128.91 | |||||
| 2 | WP3191898 | Cap, Burner (right Rear) (Replaces: 3191898) |
|
$ 71.00 | |||||
| 2 | WP3191904 | Cap, Burner (left Front) (Replaces: 3191904) |
|
$ 184.16 | |||||
| 3 | WP4455980 | Burner (r. Front, L. Rear) (Replaces: 4455980) |
|
$ 65.21 | |||||
| 3 | 4455979 | Burner (right Rear) |
|
$ 28.52 | |||||
| 3 | WP4455981 | Burner (left Front) (Replaces: 4455981) |
|
Immediately | $ 91.90 | ||||
| 4 | 8272253 | Cooktop |
|
- | |||||
| 5 | 8523855 | Panel, Manifold |
|
$ 176.18 | |||||
| 6 | WP8273103 | Knob, Control (3) (Replaces: 8273103) |
|
Immediately | $ 16.85 | ||||
| 7 | WP8273103 | Knob, Powerburner (Replaces: 8273111) |
|
Immediately | $ 16.85 | ||||
| 8 | WPW10268483 | Grate, Burner (4) (Replaces: 8053458) |
|
$ 140.02 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
