Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11219665 Endcap (right Hand)   (Replaces: W10009090) Special Order $ 40.44

1 W11219664 Endcap (left Hand)   (Replaces: W10009080) Special Order $ 146.50

2 8053505 Shield, Lower Heat Special Order $ 157.99

3 W10117565 Panel, Console Appelez-nous -
4 WPW10331686 Module, Spark   (Replaces: 9758080) In-Stock Immediately $ 393.86

5 9762095 Brkt-mntg, Console Appelez-nous -
6 8523412 Bracket, Support Special Order $ 159.90

7 9756301 Cover, Upper Special Order $ 51.01

8 8053910 Shield, Heat Appelez-nous -
9 8273132 Cover, Lower Appelez-nous -
10 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.95

11 WPW10108260 Control, Range   (Replaces: W10108260) Special Order $ 356.93

12 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.02

13 9757609 Badge Special Order $ 33.27

14 9762726 Brkt-mntg, Dsi Special Order $ 29.39

15 WP8273564 Clip   (Replaces: 8273564) Special Order $ 12.06

16 9762078 Bracket, Eoc Mount Special Order $ 38.13


    View Diagram in Separate Window     Print Icon   Print Part List

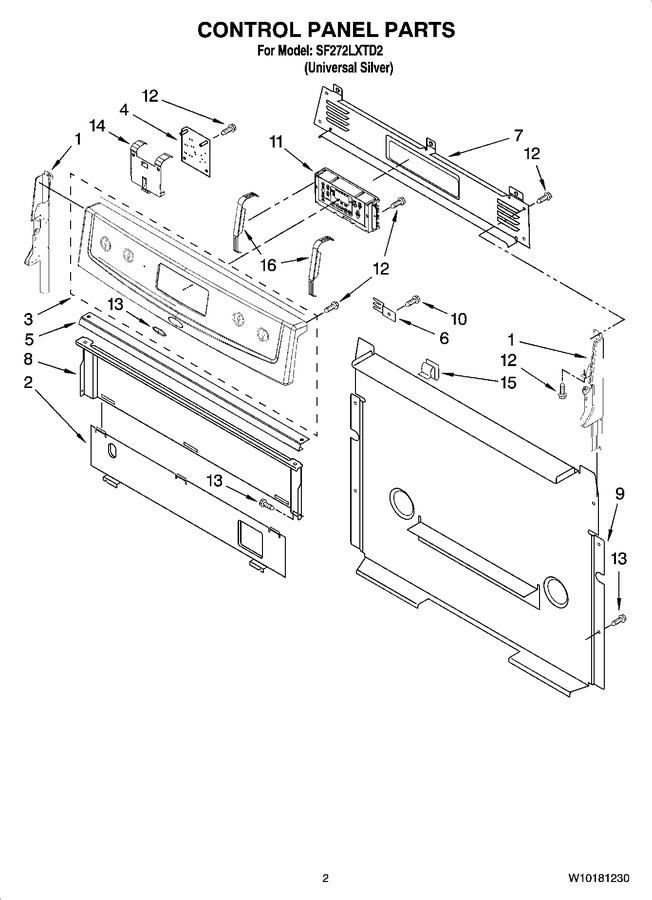

Diagram for SF272LXTD2
