SELECT A DIAGRAM

01 - Blower Motor (convection Fan Lower)


02 - Blower Motor (convection Fan W276w)


03 - Blower Motor (cooling Fan Lower W276w)


04 - Blower Motor (cooling Fan Lower)


05 - Blower Motor (cooling Fan Upper W276w)


06 - Blower Motor (cooling Fan Upper)


07 - Body (lower W276)


08 - Body (w276w)

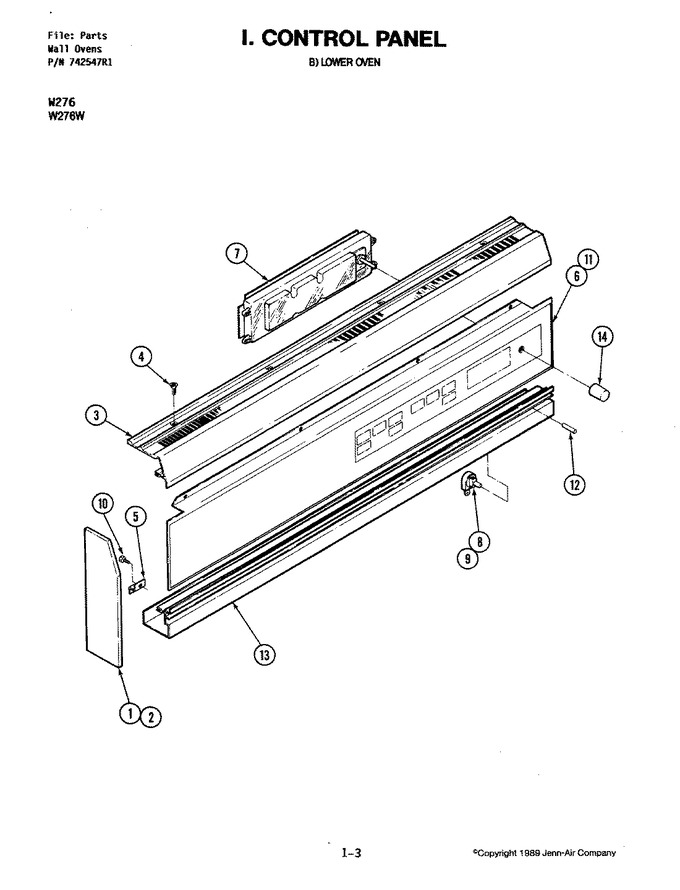

09 - Control Panel (lower Oven W276w)


10 - Control Panel (upper W276w)


11 - Control Panel (upper)


12 - Door (lower W276w)


13 - Door (upper W276w)


14 - Door (upper)


15 - Internal Controls (lower)


16 - Internal Controls (upper)


17 - Oven (upper W276w)


18 - Oven (w276w)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705015		Cap, End (rt/wht)	1	Appelez-nous	-
2	705014		Cap, End (lt/wht)	1	Appelez-nous	-
3	705203		Extrusion, Top (wht)	1	Appelez-nous	-
4	712066		Screw	1	Appelez-nous	-
5	701609		Angle, Attachment	1	Appelez-nous	-
6	Y712610		Control Panel, Back Assy	1	Appelez-nous	-
7	Y704728		Clock	1	Appelez-nous	-
8	Y705011		Switch, Push (alum)	1	Appelez-nous	-
8	704974		Wire, Gray	1	Appelez-nous	-
9	704730		Bracket, Switch	1	Appelez-nous	-
10	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.88
11	704704		Harness, Wire (j2)	1	Appelez-nous	-
12	705010		Extension, Switch (wht)	1	Appelez-nous	-
13	705017		Extrusion, Bottom (wht)	1	Appelez-nous	-
14	WP7711P492-60		Knob, Clock (lg-gry) ??   (Replaces: Y704485)	1			$ 12.74
14	705031		Harness, Wire	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
