Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y04010206 Diode 1 Appelez-nous -
2 WP8281227 Screw   (Replaces: Y03010144) 1 Special Order $ 9.86

3 03050003 Nut 1 Appelez-nous -
4 Y01020023 Capacitor 1 Appelez-nous -
5 02030123 Bracket 1 Appelez-nous -
6 Y03020076 Screw 1 Appelez-nous -
7 Y01100036 Clip, Fuse 1 Appelez-nous -
8 Y01050005 Fuse 15a 125v 1 Appelez-nous -
9 01100045 Receptacle, Light 1 Appelez-nous -
10 Y01060024 Bulb, Light 1 Appelez-nous -
11 01040004 Magnetron 1 Appelez-nous -
12 Y02400007 Lens, Bulb 1 Appelez-nous -
13 03010098 Screw 1 Appelez-nous -
14 Y02410004 Rack, Oven 1 Appelez-nous -
15 02010031 Support, Rack 1 Appelez-nous -
16 Y02280024 Shelf, Glass 1 Appelez-nous -
17 Y03110050 Clip 1 Appelez-nous -
17 Y02300045 Cover, Stirrer 1 Appelez-nous -
18 Y03110055 Clip, Stirrer 1 Appelez-nous -
19 04021190 Blade, Bushing Assembly 1 Appelez-nous -
20 02360058 Shaft, Stirrer 1 Appelez-nous -
21 03050007 Nut, Shaft Stirrer 1 Appelez-nous -
22 02020020 Brace, Upper Right Support 1 Appelez-nous -
23 02140065 Cabinet (white) 1 Appelez-nous -
24 03110046 Clip, Cabinet (lt) 1 Appelez-nous -
25 01220006 Probe, Temp. 1 Appelez-nous -
26 01170008 Jack, Probe 1 Appelez-nous -
27 02100195 Trim, Control Panel 1 Appelez-nous -
28 01180010 Switch, Temp Limit 1 Appelez-nous -
28 04021362 Cavity 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

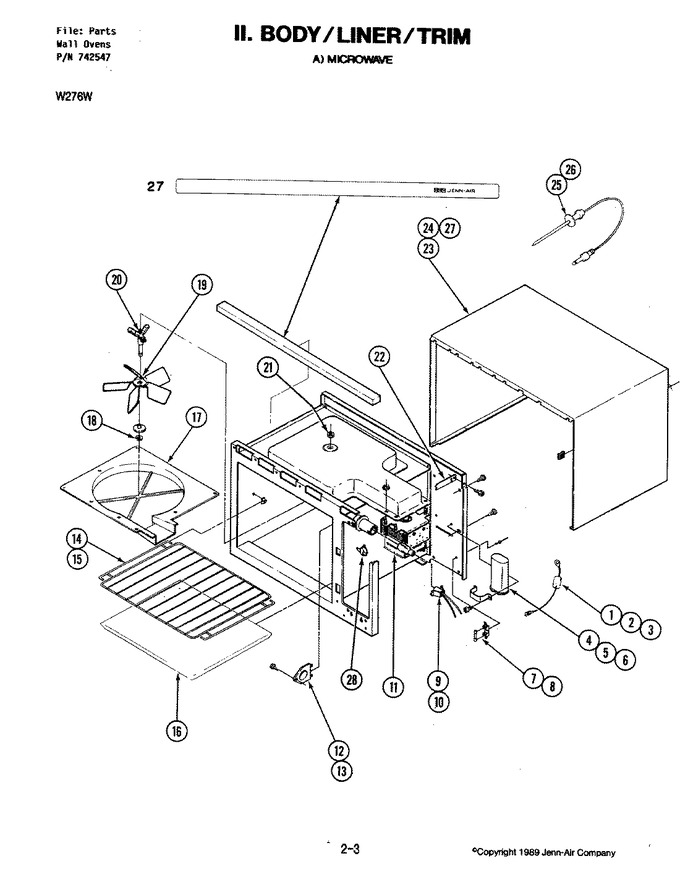

Diagram for W276W
