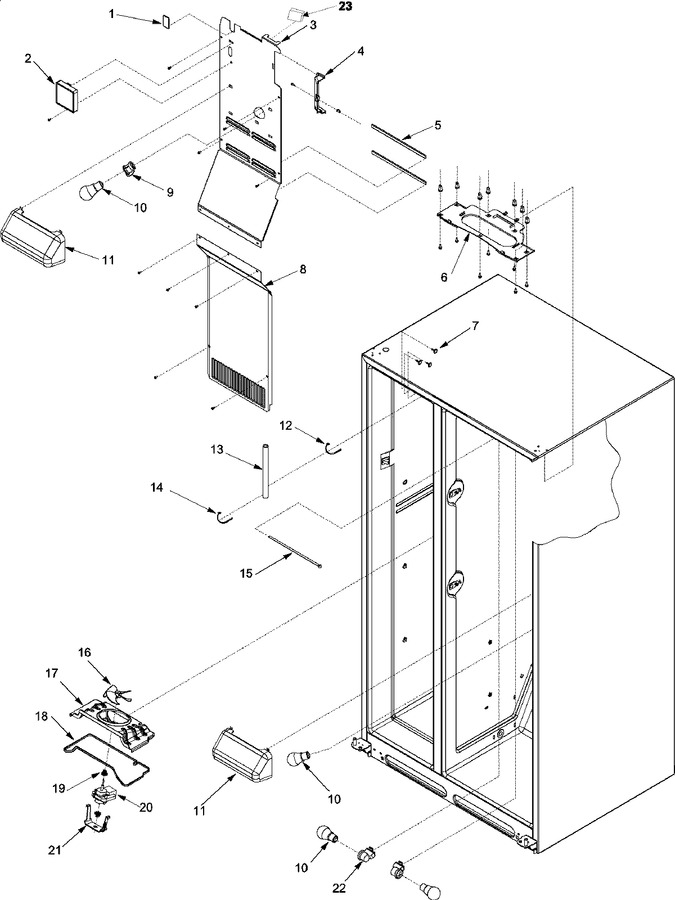

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12625201 | Cover, Conv Fz Bk |
|
- | |||||
| 2 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 2 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 3 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 3 | 67002215 | Back, Inner Fz |
|
- | |||||
| 4 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 4 | 12583101 | Cover, Supply Air |
|
- | |||||
| 4 | M0580007 | Grommet, Screw |
|
- | |||||
| 5 | B8386604 | Gasket, Air |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 6 | 12666201 | Plate, Light Backing |
|
- | |||||
| 6 | M0580007 | Grommet, Screw |
|
- | |||||
| 7 | M0311605 | Plug, Button (wht) |
|
- | |||||
| 8 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 8 | 12403401 | Cover, Evap |
|
- | |||||
| 9 | W11447232 | Socket, Light (Replaces: 67002216) |
|
Immediately | $ 13.87 | ||||
| 10 | 67002217 | Lamp, 25w/50hz |
|
- | |||||
| 11 | 67001507 | Shield, Crisper Light |
|
- | |||||
| 12 | M0322202 | Tie Wire |
|
- | |||||
| 13 | 67002219 | Insulation, Tubing |
|
- | |||||
| 14 | M0321210 | Tie, Elec |
|
- | |||||
| 15 | 12617601 | Tube, Plastic |
|
- | |||||
| 16 | WP2169142 | Fan, Evaporator (Replaces: 12217201) |
|
Immediately | $ 43.41 | ||||
| 17 | 12590001 | Shroud, Evap |
|
- | |||||
| 18 | 67001508 | Gasket |
|
- | |||||
| 19 | WP67002780 | Grommet, Fan Motor (Replaces: 12619301) |
|
$ 8.20 | |||||
| 20 | 10449511 | Motor, Evap Fan |
|
$ 143.27 | |||||
| 21 | 12217805 | Clip, Evap Motor |
|
- | |||||
| 22 | 67002218 | Receptacle, Bulb |
|
- | |||||
| 23 | 67003631 | Gasket, Foam |
|
- | |||||
| 24 | W11291138 | Switch, Ref Light (Replaces: 12466104) |
|
Immediately | $ 36.67 |
