SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Shelf


08 - Handles And Trim


09 - Hinges


10 - Ice Maker


11 - Light Covers And Toe Grille


12 - Machine Compartment


13 - Ref/fz Door And Shelf


14 - Supplemental Information


15 - Wiring Information

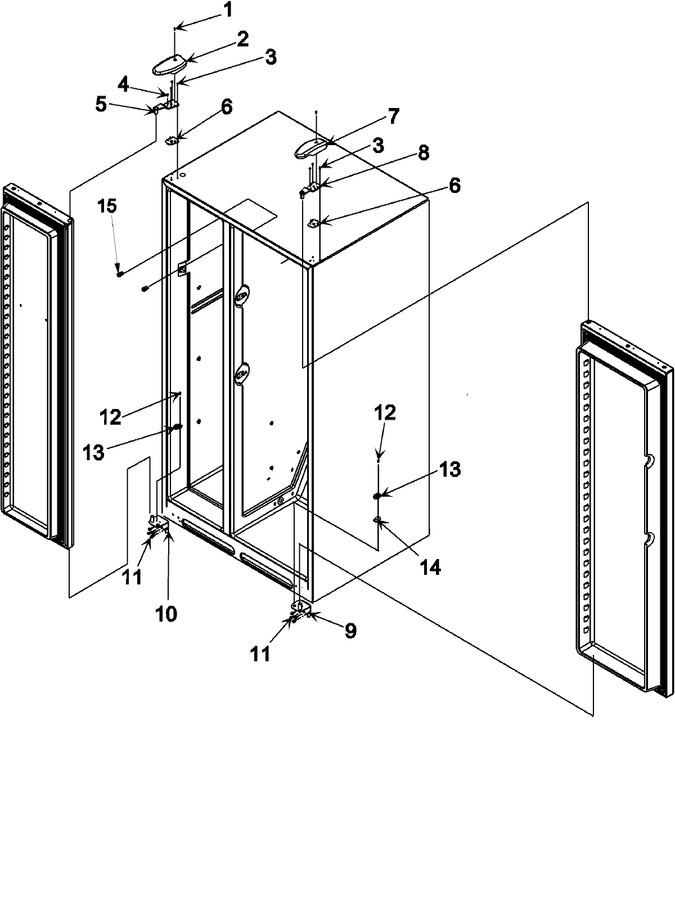

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
2	W10217485		Cover, Top Hinge (lt-blk)   (Replaces: 12629802B)				$ 22.72
3	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
4	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.72
5	12626911ED		Hinge, Top (lt-blk)   (Replaces: 12626902ED)				$ 89.05
6	12695601		Shim, Top Hinge		Appelez-nous	-
7	12629801B		Cover, Top Hinge (rt-blk)				$ 25.13
8	12626910ED		Hinge, Top (rt-blk)   (Replaces: 12626901ED)				$ 124.87
9	12636902ED		Hinge, Bottom (rt-blk)		Appelez-nous	-
10	12636901ED		Hinge, Bottom (lt-blk)				$ 34.72
11	WP67006715		Screw, Sm   (Replaces: M0241508)				$ 7.55
12	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 14.91
13	R0181181		Closure, Door (blk)   (Replaces: 12431302)			Immediately	$ 7.55
14	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)				$ 7.83
15	M0581003		Grommet, Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
