SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Shelf


08 - Handles And Trim


09 - Hinges


10 - Ice Maker


11 - Light Covers And Toe Grille


12 - Machine Compartment


13 - Ref/fz Door And Shelf


14 - Supplemental Information


15 - Wiring Information

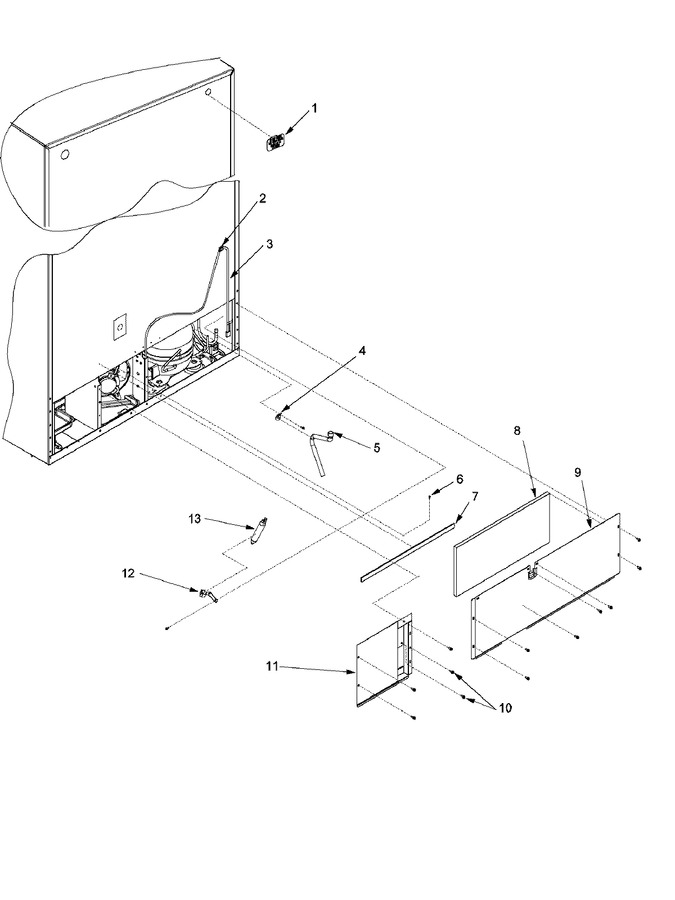

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3080001		Plug, Button (blk)		Appelez-nous	-
2	WPM0104106		Clip   (Replaces: M0104106)				$ 7.78
3	67002229		Cord, Power		Appelez-nous	-
4	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
4	M0102303		Clamp		Appelez-nous	-
5	12580401		Tube, Drain		Appelez-nous	-
6	WP489399		Screw, Ca   (Replaces: M0239216)				$ 6.95
7	B5759649		Gasket, Mc Back		Appelez-nous	-
8	B0523599		Insulation, Mc Back		Appelez-nous	-
9	67002230		Back, Mach Comp		Appelez-nous	-
9	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
10	681390		Screw   (Replaces: M0251015)				$ 13.06
11	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
11	67003149		Cover, Water Valve		Appelez-nous	-
12	10547002		Clip, Drier		Appelez-nous	-
12	67002999		Screw, Sm		Appelez-nous	-
13	WPB2150504		Drier   (Replaces: B2150504)				$ 130.46

    View Diagram in Separate Window       Print Part List
