Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12570603 Shelf, Up Fz Appelez-nous -
2 12314102 Trim, Basket/shelf Appelez-nous -
3 C8973801 Support, Frz Shelf Special Order $ 8.35

4 12015002 Support, Shelf (lt) Special Order $ 7.38

5 12570503 Shelf, Lw Fz Appelez-nous -
6 WP10941102 Support, Shelf (rt) Special Order $ 11.81

7 12314101 Trim, Basket/shelf Appelez-nous -
8 12015101 Rail, Shelf (lt) Appelez-nous -
9 12314101 Trim, Basket/shelf Appelez-nous -
10 12570303 Basket, Lw Fz Appelez-nous -
11 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.00

12 10972801 Rail, Shelf (rt) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

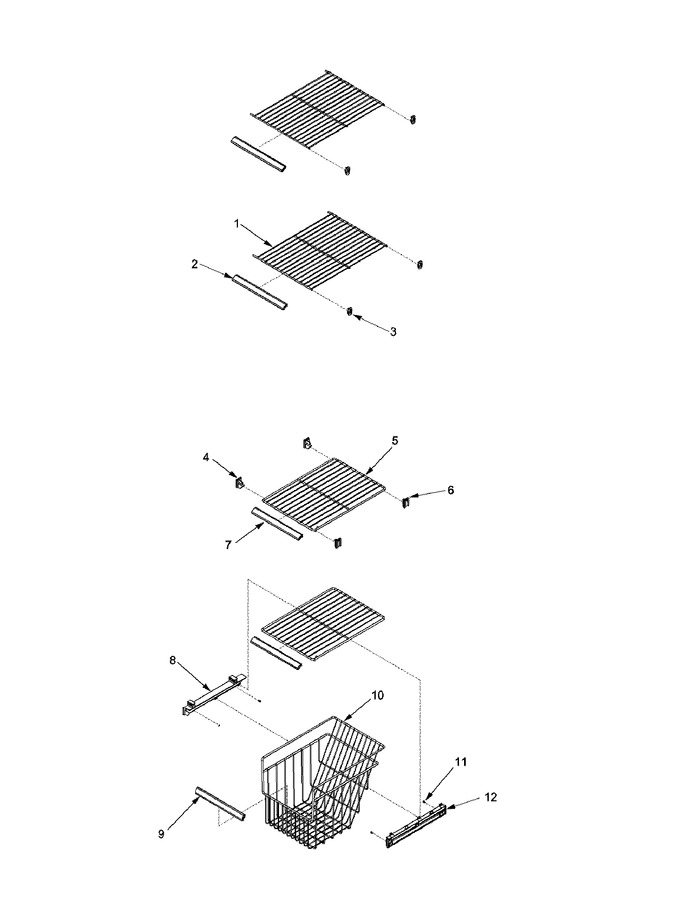

Diagram for XRSS204BW (BOM: PXRSS204BW1)
