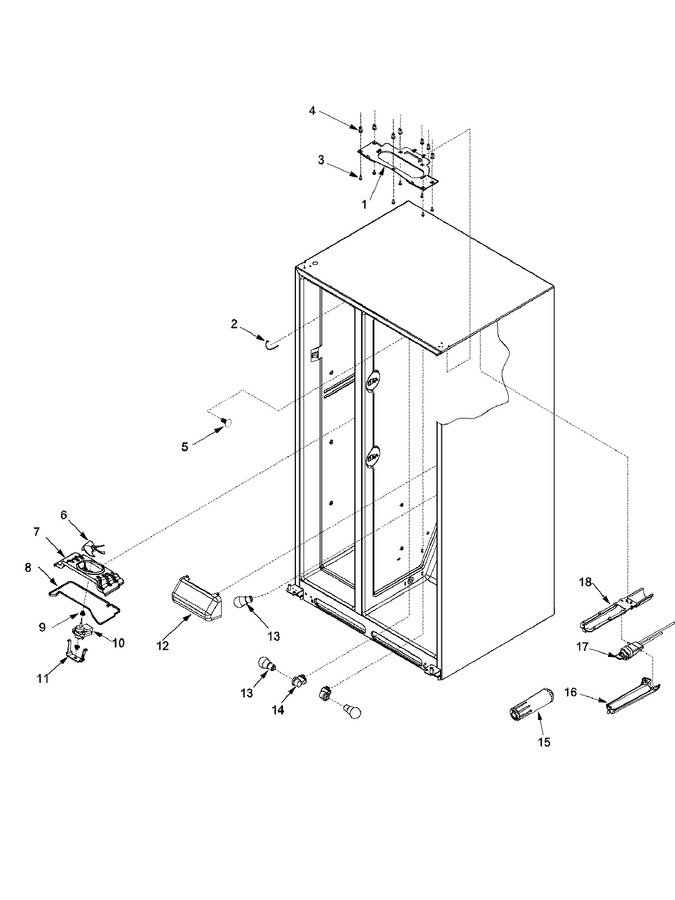

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12666201 | Plate, Light Backing |
|
- | |||||
| 2 | M0322202 | Tie Wire |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 4 | M0580007 | Grommet, Screw |
|
- | |||||
| 5 | 67002417 | Plug, Button |
|
- | |||||
| 6 | WP2169142 | Fan, Evaporator (Replaces: 12217201) |
|
Immediately | $ 43.41 | ||||
| 7 | 12590001 | Shroud, Evap |
|
- | |||||
| 8 | 67001508 | Gasket |
|
- | |||||
| 9 | WP67002780 | Grommet, Fan Motor (Replaces: 12619301) |
|
$ 8.20 | |||||
| 10 | 10449511 | Motor, Evap Fan |
|
$ 143.27 | |||||
| 11 | 12217805 | Clip, Evap Motor |
|
- | |||||
| 12 | 67001507 | Shield, Crisper Light |
|
- | |||||
| 13 | 67002217 | Lamp, 25w/50hz |
|
- | |||||
| 14 | 67002218 | Receptacle, Bulb |
|
- | |||||
| 15 | EDR4RXD1B | Filter, Water (generic) (Replaces: 67002269) |
|
Immediately | $ 49.99 | ||||
| 16 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 17 | 67002270 | Water, Filter Assy |
|
- | |||||
| 18 | 12688503 | Plate, Filter Backing |
|
$ 6.95 |
