Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10961002 Bushing, Door (blk) Appelez-nous -
2 M0311604 Plug, Button (blk) Appelez-nous -
3 W10133491 Gasket, Fz Dr (blk)   (Replaces: 12591502B) Special Order $ 359.89

4 12556901 Bucket, Upr Fz Dr Appelez-nous -
5 12557501 Bucket, Lwr Fz Dr Special Order $ 17.64

6 67002264 Bucket, Fz Tilt Out Appelez-nous -
7 12569401 Frame, Tilt Bucket Appelez-nous -
8 A3080001 Plug, Button (blk) Appelez-nous -
9 R0181181 Closure, Door (blk)   (Replaces: 12113204) In-Stock Immediately $ 7.55

9 WP8281227 Screw, Tc   (Replaces: M0220432) Special Order $ 10.96

10 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

10 12636401B Stop, Door (blk) Special Order $ 10.80

11 67003358 Fz Dr Foam Assy (blk) Appelez-nous -
12 67002206 Ref Dr Foam Assy(blk) Appelez-nous -
13 W10840101 Gasket, Ref Dr (blk)   (Replaces: 12591501B) Special Order $ 327.25

14 12556401 Bucket, Gallon Appelez-nous -
15 12568601 Bucket, Gallon Tilt Appelez-nous -
16 67002291 Cover, Chiller Appelez-nous -
17 67002292 Linkage, Ctr Chiller Appelez-nous -
18 67002293 Linkage, Chiller Special Order $ 11.76

19 67002409 Frame, Mini Chiller Appelez-nous -
19 67002294 Frame, Large Chiller Appelez-nous -
20 67002410 Door, Mini Chiller (lt) Appelez-nous -
20 67002295 Door, Large Chiller (lt) Appelez-nous -
21 67002296 Tray, Chiller Special Order $ 26.66

22 67002411 Door, Mini Chiller (rt) Appelez-nous -
22 67002297 Door, Large Chiller (rt) Appelez-nous -
23 67001325 Door, Dairy Appelez-nous -
24 67002304 Tray, Dairy Appelez-nous -
25 10436404 Lid, Utility Special Order $ 60.85

26 10436506 Tray, Egg Special Order $ 8.28

27 10423131 Bin, Utility Special Order $ 31.13

28 10448903 Rack, Bottle Appelez-nous -
29 12568801 Frame, Tilt Bucket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

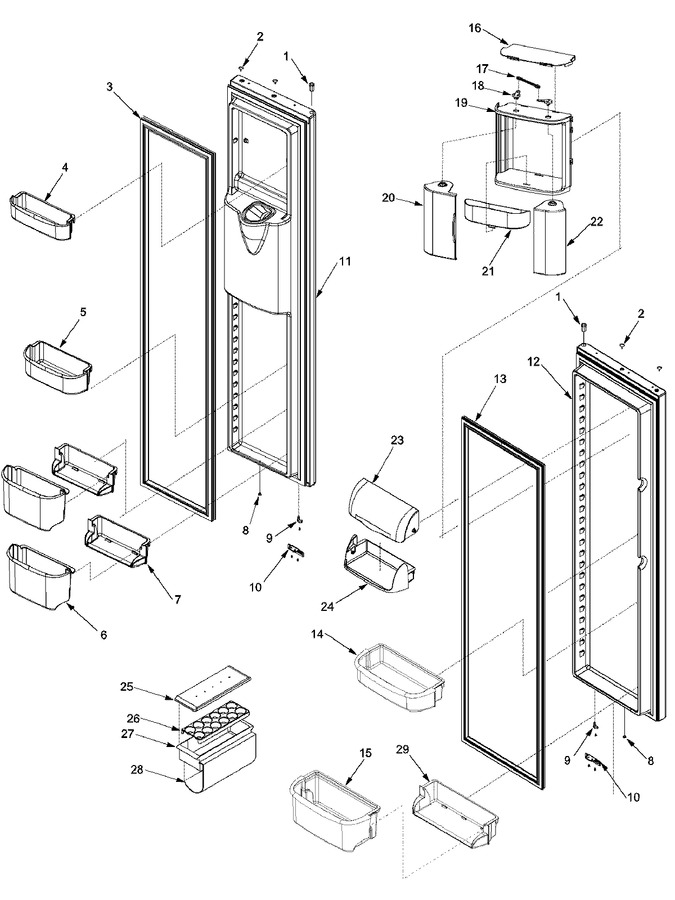

Diagram for XRSS687BB (BOM: PXRSS687BB0)
