01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts, Optional Parts

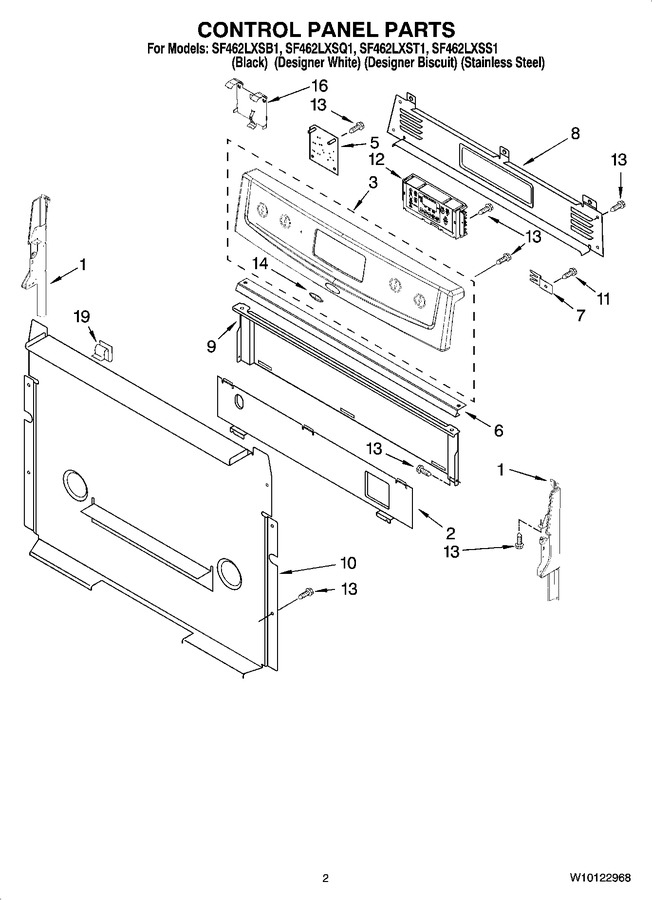

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219665		Endcap (right Hand-black)   (Replaces: W10009090)				$ 45.17
1	W11219365		Endcap (left Hand White)   (Replaces: W10009040)				$ 42.45
1	W10009060		Endcap (left Hand Biscuit)		Appelez-nous	-
1	W11219664		Endcap (left Hand-black)   (Replaces: W10009080)				$ 153.83
1	W11219370		Endcap (right Hand White)   (Replaces: W10009050)				$ 60.83
1	W11230612		Endcap (right Hand Biscuit)   (Replaces: W10009070)		Appelez-nous	-
2	8053505		Shield, Lower Heat				$ 165.89
3	9762090		Panel, Control (silver For Stnlss)		Appelez-nous	-
3	9762088		Panel, Control (biscuit)		Appelez-nous	-
3	9762087		Panel, Control (white)		Appelez-nous	-
3	9762089		Panel, Control (black)		Appelez-nous	-
5	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
6	9762095		Brkt-mntg, Console		Appelez-nous	-
7	8523412		Bracket, Support				$ 167.90
8	9756301		Cover, Upper				$ 51.01
9	8053910		Shield, Heat		Appelez-nous	-
10	8273132		Cover, Lower		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	WPW10108200		Control, Range (biscuit)   (Replaces: W10108200)				$ 374.78
12	WPW10108190		Control, Range (black)   (Replaces: W10108190)			Immediately	$ 462.72
12	WPW10108190		Control, Range (white)   (Replaces: W10108180)			Immediately	$ 462.72
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	9757609		Badge				$ 33.27
16	9762726		Brkt-mntg, Dsi				$ 29.39
19	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
