SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts, Optional Parts

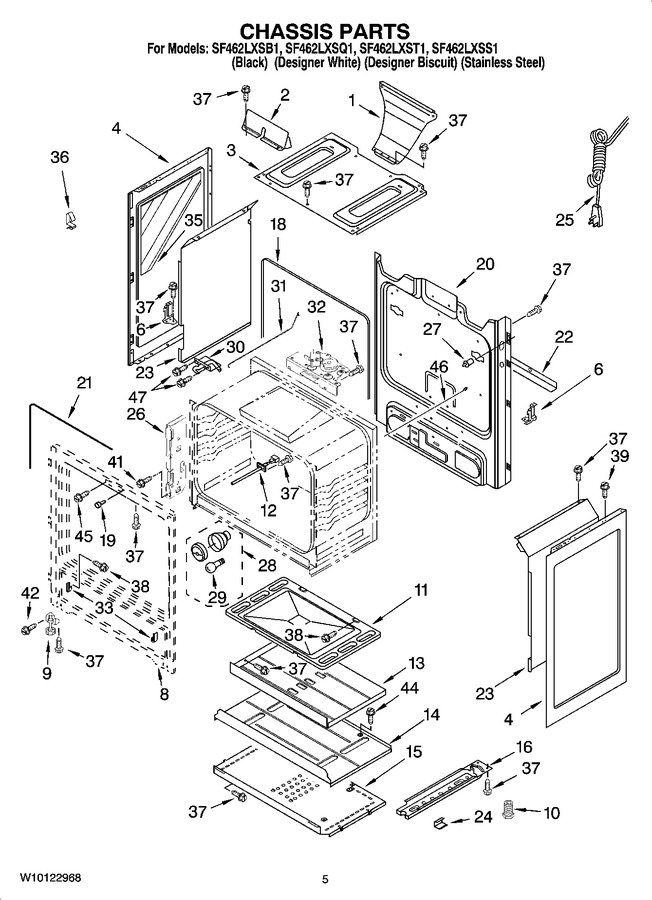

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: W10012240)				$ 150.29
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 70.96
3	W11379351		Burner Box   (Replaces: 8273036)				$ 61.13
4	WPW10575396		Panel, Side (2) (white-textured)   (Replaces: 8053830)				$ 148.71
4	W10162246		Panel, Side (2) (biscuit-textured)   (Replaces: 8272519)				$ 196.10
4	W11730303		Panel, Side (2) (black-textured)   (Replaces: 8053832)			Immediately	$ 164.83
6	8523249		Brkt, Manifold Mtg		Appelez-nous	-
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 82.97
10	WPW10058460		Foot, Rear (2)   (Replaces: W10058460)			Immediately	$ 7.85
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 220.05
12	WPW10181986		Sensor, Oven   (Replaces: 8273902)			Immediately	$ 106.83
13	8053967		Baffle, Burner				$ 300.91
14	8053969		Shield, Heat				$ 107.66
15	8053968		Shield, Lower		Appelez-nous	-
16	W11818353		Rail, Base (2)   (Replaces: 9760314)				$ 59.68
18	W10008830		Seal, Oven Flange				$ 6.32
19	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 53.39
20	9757098		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven Door   (Replaces: 8522416)			Immediately	$ 50.20
22	8053971		Brace, Main Back				$ 7.82
23	9761449		Retainer, Insul. (left Hand)				$ 317.63
23	9761448		Retainer, Insul. (right Hand)		Appelez-nous	-
24	3196576		Clip, Panel (6)		Appelez-nous	-
25	W11582239		Cord, Power   (Replaces: 9757891)				$ 16.75
26	W10647259		Brkt-hinge   (Replaces: 9760407)			Immediately	$ 9.32
27	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 144.44
28	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 87.01
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
30	WP9761013		Latch, Door   (Replaces: 9761013)				$ 244.15
31	W10078370		Rod, Latch				$ 90.70
32	WPW10107820		Latch-mtr   (Replaces: W10107820)				$ 294.81
33	WPW10114344		Glide, Drawer   (Replaces: 9759785)			Immediately	$ 8.16
35	9761490		Insulation		Appelez-nous	-
36	9761512		Clip, Mounting		Appelez-nous	-
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
38	3196152		Screw				$ 8.99
39	98008169		Screw (biscuit)   (Replaces: 8281194)		Appelez-nous	-
39	3196166		Screw (white)				$ 7.01
41	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
42	WP98008545		Screw   (Replaces: 3196179)				$ 17.71
44	WP7101P246-60		Screw   (Replaces: 3196177)				$ 7.75
45	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.75
46	9757239		Rod - Door Switch, Rear Mount				$ 91.78
47	8053915		Insulation, Vent   (Replaces: 8272613)				$ 12.44
47	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 117.75
47	W11688737		Insulation, Back   (Replaces: 8272614)				$ 116.89
47	W11169708		Screw   (Replaces: 3196560)				$ 13.36

    View Diagram in Separate Window       Print Part List
