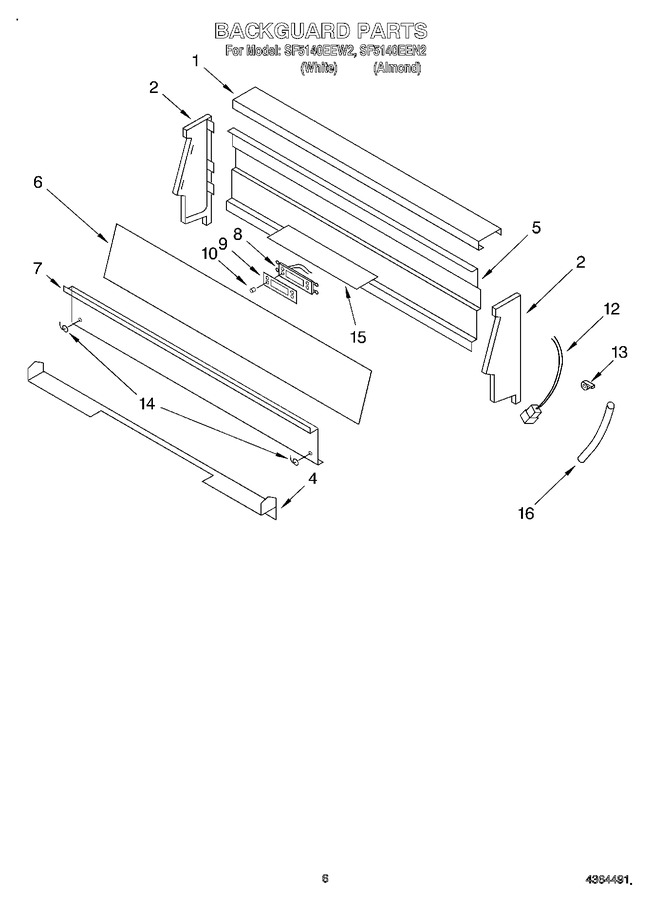

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364329		Trim, Top		Appelez-nous	-
2	4364330		Endcap (left Hand)		Appelez-nous	-
2	4364331		Endcap (right Hand)		Appelez-nous	-
4	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
4	4364332		Support, Backguard		Appelez-nous	-
5	4364333		Cover, Rear Bkgd		Appelez-nous	-
6	4364489		Glass, Backguard		Appelez-nous	-
7	4364335		Panel, Backsplash (almond)		Appelez-nous	-
7	4364336		Panel, Backsplash (white)		Appelez-nous	-
8	4364488		Clock, Timer				$ 189.72
9	4364338		Cover, Switch		Appelez-nous	-
10	4364339		Button, Timer		Appelez-nous	-
12	4364490		Harness, Backguard		Appelez-nous	-
13	4364342		Strain Relief		Appelez-nous	-
14	4364102		Pin, Hinge		Appelez-nous	-
15	4364343		Deflector, Heat		Appelez-nous	-
16	4364100		Strain Relief		Appelez-nous	-
16	4364321		Harness, Wire (red Jumper)		Appelez-nous	-
16	4364098		Thermostat Wire		Appelez-nous	-
16	4364099		Power Cord		Appelez-nous	-
16	4364344		Sleeve, Harness		Appelez-nous	-
16	4364095		Wire Bushing		Appelez-nous	-
16	4364320		Harness, Wire (black Jumper)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
