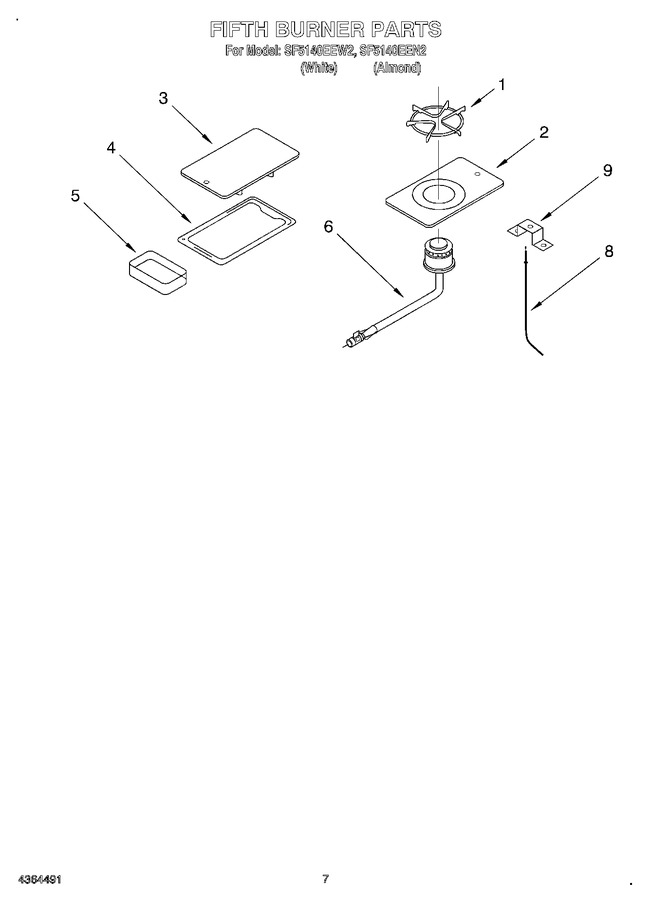

05 - Fifth Burner, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364313		Grate, Fifth Brnr		Appelez-nous	-
2	4364312		Top, Fifth Burner (almond)		Appelez-nous	-
2	4364311		Top, Fifth Burner (white)		Appelez-nous	-
3	4364309		Cover, Griddle (stainless Only)		Appelez-nous	-
4	4364310		Griddle		Appelez-nous	-
5	4364319		Tray, Grease		Appelez-nous	-
6	4364316		Burner, Fifth		Appelez-nous	-
8	4364265		Electrode, Burner		Appelez-nous	-
9	4364150		Cover, Pilot		Appelez-nous	-
	LIT4364003		Use & Care Guide		Appelez-nous	-
	LIT4364407		Wiring Diagram		Appelez-nous	-
