SELECT A DIAGRAM

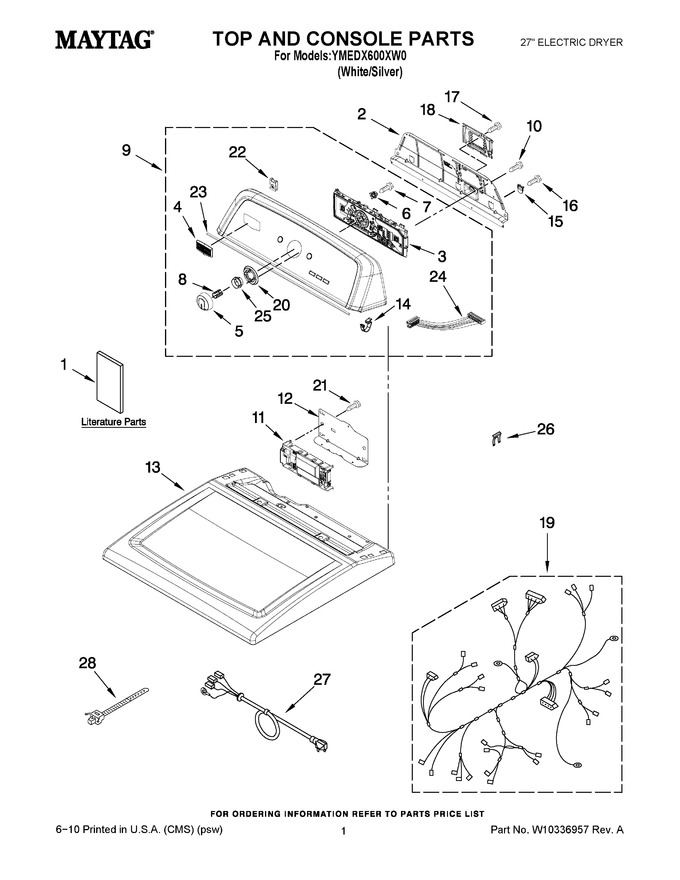

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10097036		Tech Sheet		Appelez-nous	-
1	W10096989		Guide, Use & Care		Appelez-nous	-
1	W10253978		Wiring Diagram		Appelez-nous	-
1	W10096984		Installation, Instruction		Appelez-nous	-
2	W10096969		Panel, Rear Console				$ 197.80
3	WPW10272643		User Interface   (Replaces: W10272643)				$ 337.21
4	W10492808		Badge Assembly   (Replaces: W10323735)				$ 59.82
5	WPW10251381		Knob Assembly   (Replaces: W10251381)				$ 58.63
6	W10274524		Tensioner-fascia		Appelez-nous	-
7	W10853898		Screw, 8-16 X 1/2   (Replaces: W10219342)			Immediately	$ 8.18
8	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
9	W10293247		Console Assembly				$ 328.53
10	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
11	WPW10317638		Ccu-control   (Replaces: W10331078)				$ 344.65
12	W10271580		Bracket, Motor Control		Appelez-nous	-
13	WPW10268730		Top   (Replaces: W10268730)				$ 345.86
14	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10279552		Plug, Rear Panel		Appelez-nous	-
16	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
17	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
18	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
19	W10253984		Harness, Electric				$ 108.06
20	W10305134		Bezel, Cycle Trim				$ 26.37
21	8533917		Screw				$ 14.04
22	W11213336		Nut, 8-18 U-type   (Replaces: W10298336)				$ 8.13
23	W10280079		Seal-console		Appelez-nous	-
24	W10285494		Cable, User Interface		Appelez-nous	-
25	W10326923		Spacer, Knob		Appelez-nous	-
26	W11712577		Strain-relief   (Replaces: 694415)			Immediately	$ 7.77
27	W11095079		Power Cord   (Replaces: 8579325)			Immediately	$ 138.24
28	3405248		Cable Tie		Appelez-nous	-
