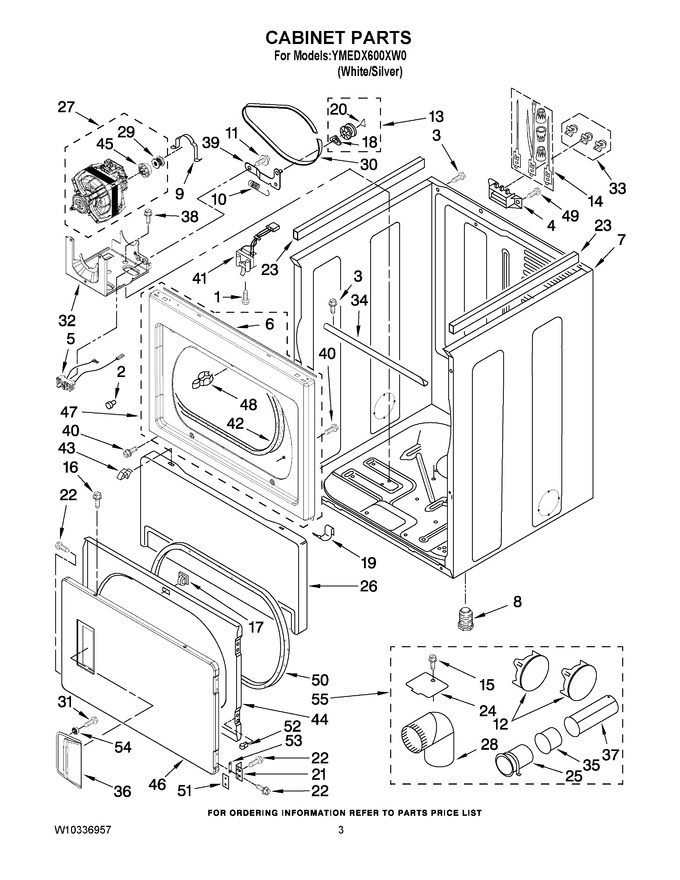

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
2	693152		Bumper				$ 11.51
3	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
4	WP3397659		Block Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 36.06
6	W10312811		Seal-spill Guard				$ 67.73
7	W11417441		Cabinet   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10131132		Plug, Multivent   (Replaces: W10331132)				$ 75.81
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 106.04
15	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
16	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
17	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
18	WPW10512946		Tri- Ring   (Replaces: 690997)			Immediately	$ 8.80
19	WPW10291934		Retainer, Toe Panel   (Replaces: W10291934)				$ 8.14
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	W11175815		Hinge & Pin Assembly   (Replaces: 3389247)				$ 85.48
22	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
23	W10336128		Foam Seal   (Replaces: W10307570)				$ 15.08
24	WPW10354249		Cover-plate   (Replaces: 3394331)				$ 9.41
25	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
26	WP3406797		Toe Panel (includes Item. 2)   (Replaces: 697215)				$ 250.25
27	WPW10508324		Motor, Assembly 60 Hz.   (Replaces: W10281085)			Immediately	$ 342.91
28	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
29	W10837625		Pulley, Motor 60 Hz.   (Replaces: 3389729)			Immediately	$ 12.77
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
31	WPW10273971		Screw, 6-19 Nx 1/2   (Replaces: W10192860)			Immediately	$ 7.55
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	W10236068		Bracket, Cabinet				$ 24.47
35	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
36	WPW10284182		Handle, Door   (Replaces: W10284182)			Immediately	$ 94.32
37	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
38	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
42	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
43	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
44	280083		Door, Rear   (Replaces: 3392563)				$ 301.37
45	WP3393657		Belt Restrainer   (Replaces: 3393657)			Immediately	$ 139.08
46	W10322551		Door, Front   (Replaces: W10279721)				$ 164.58
47	W10115218		Upper Front Panel				$ 337.32
48	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
49	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.87
50	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
51	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
52	3389249		Nut, Inner Door		Appelez-nous	-
53	W10191265		Plug, Hinge Screw				$ 46.49
54	W10294344		Spacer, Handle Mount				$ 11.78
55	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Gray)   (Replaces: W10186596)			Immediately	$ 76.65
NI	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
