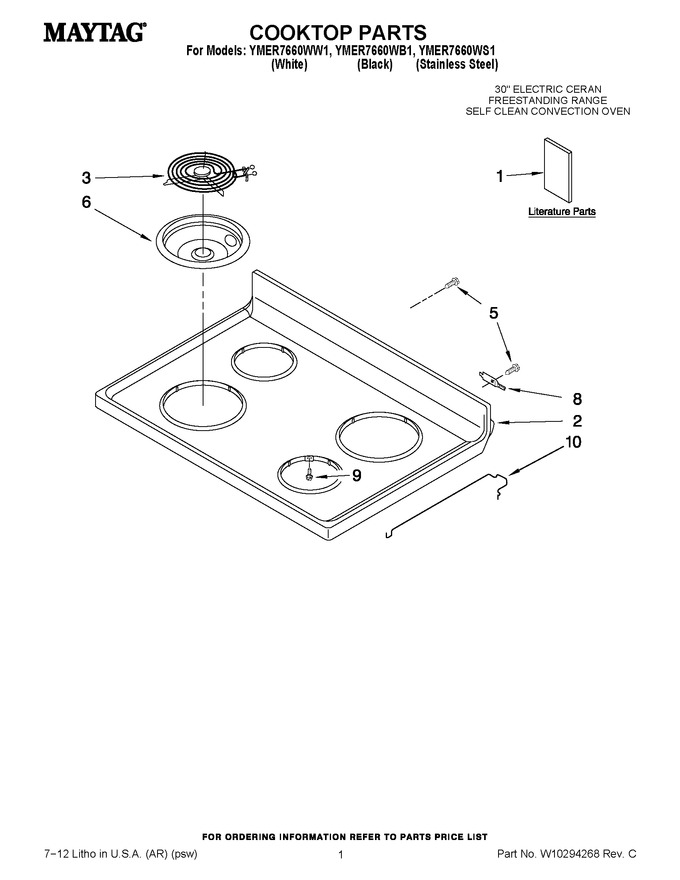

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10234646 | Owner?s Manual |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10361708 | Tech Sheet (english) |
|
- | |||||
| 1 | W10361709 | Tech Sheet (french) |
|
- | |||||
| 1 | W10196159 | Installation |
|
- | |||||
| 1 | 9757143 | Instructions (english/french) |
|
- | |||||
| 1 | 9757142 | Instructions (english/spanish) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 509.93 | |||||
| 2 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 3 | WPW10259868 | Element, Surface (6`` Element) (Replaces: W10259868) |
|
Immediately | $ 173.17 | ||||
| 3 | WPW10259865 | Element, Surface (8`` Element) (Replaces: W10259865) |
|
Immediately | $ 144.20 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10196405 | Pan, Drip 8`` (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 6 | WPW10196406 | Pan, Drip 6`` (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 8 | WP3195060 | Hinge, Pin (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 9 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 10 | WP3195812 | Rod, Support Ct (Replaces: 3195812) |
|
Immediately | $ 8.73 |
