01 - Cooktop Parts

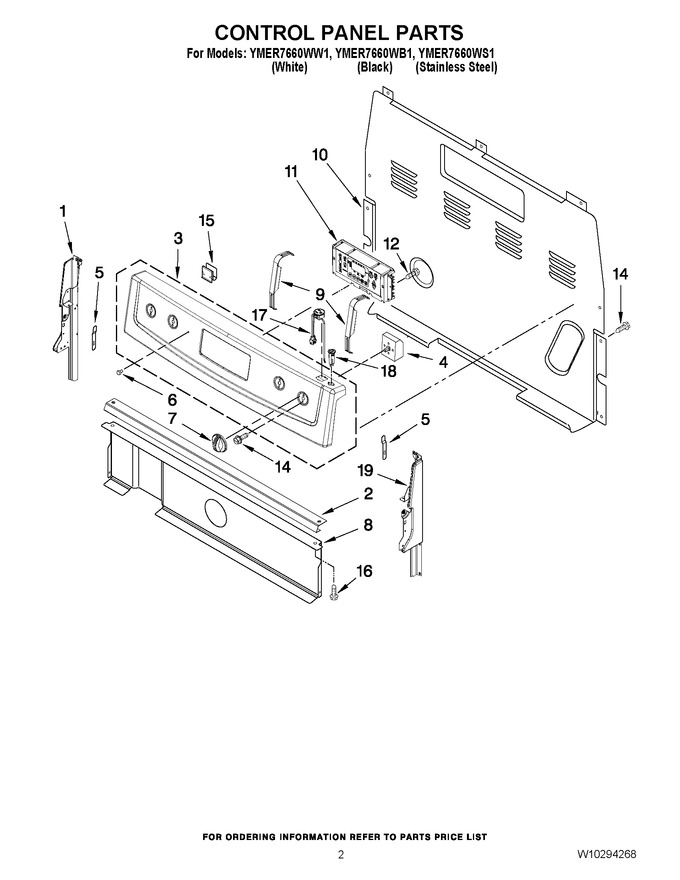

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | End Cap, Left (black) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219365 | End Cap, Left (white) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W11230932 | Bracket, Console (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 3 | W10292017 | Panel, Control (white) |
|
$ 116.45 | |||||
| 3 | W10292019 | Panel, Control (stainless Steel) |
|
$ 143.71 | |||||
| 3 | W10292018 | Panel, Control (black) |
|
$ 127.77 | |||||
| 4 | WP3149400 | Switch, Infinite (lf & Rr) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | WP3148952 | Switch, Infinite (rf & Lr) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 21.23 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 88.98 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10292046 | Control, Range (black) |
|
- | |||||
| 11 | W10292045 | Control, Range (white) |
|
- | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 15 | WP8273564 | Clip, Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 16 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 16 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 17 | W10849725 | Receptacle, Wht (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 17 | W10861164 | Receptacle, Blk (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 18 | WP9757601 | Brkr, Circuit Wht (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 18 | WP9757602 | Brkr, Circuit Blk (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 19 | W11219370 | End Cap, Right (white) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 19 | W11219665 | End Cap, Right (black) (Replaces: W10184438) |
|
$ 45.17 |
