01 - Cooktop Parts

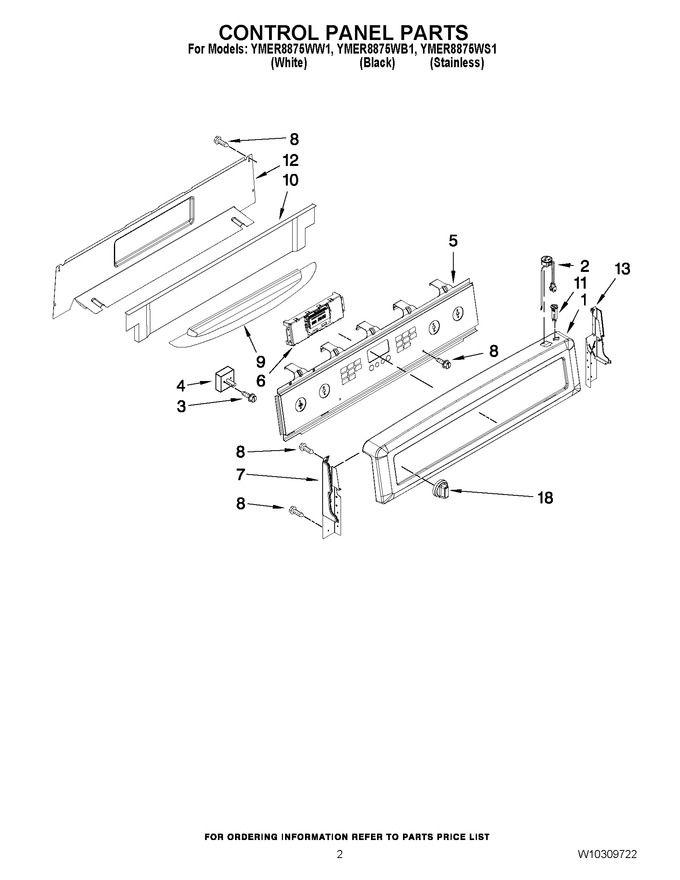

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10225556 | Panel, Backguard (black) |
|
$ 109.86 | |||||
| 1 | W10214551 | Panel, Backguard (white) |
|
$ 104.18 | |||||
| 1 | WPW10225557 | Panel, Backguard (stainless Steel) (Replaces: W10225557) |
|
$ 185.73 | |||||
| 2 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 2 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 3 | WP3400882 | Screw, Switch (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | 5500-287 | Switch, Infinte ((rr)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinte ((lr)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10169580 | Switch, Infinte (triple (rf)) (Replaces: W10169580) |
|
Immediately | $ 231.01 | ||||
| 4 | WPW10149355 | Switch, Infinte (dual (lf)) (Replaces: W10149355) |
|
Immediately | $ 204.91 | ||||
| 5 | W10207494 | Assembly, Overlay (white) |
|
$ 303.19 | |||||
| 5 | W10207495 | Assembly, Overlay (black) |
|
$ 385.61 | |||||
| 5 | W10214548 | Assembly, Overlay (stainless) |
|
$ 319.23 | |||||
| 6 | W10157249 | Control |
|
$ 346.86 | |||||
| 7 | W10163969 | End Cap, Left (black) |
|
$ 34.61 | |||||
| 7 | W10163967 | End Cap, Left (white) |
|
$ 32.00 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 9 | 3604F382-09 | Shield, Heat Visor (black) |
|
$ 50.83 | |||||
| 9 | 3604F382-81 | Shield, Heat Visor (white) |
|
$ 32.49 | |||||
| 10 | 3604F381-19 | Shield, Vent |
|
$ 31.31 | |||||
| 11 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 11 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 12 | W10243038 | Cover, Rear Wire |
|
$ 49.02 | |||||
| 13 | W10163970 | End Cap, Right (black) |
|
$ 34.76 | |||||
| 13 | W10163968 | End Cap, Right (white) |
|
- | |||||
| 18 | W10291145 | Knob (stainless Steel) |
|
$ 20.82 | |||||
| 18 | WPW10211371 | Knob (white/chrome) (Replaces: W10211371) |
|
Immediately | $ 21.23 | ||||
| 18 | W11193834 | Knob (black/chrome) (Replaces: W10211372) |
|
$ 88.98 |
