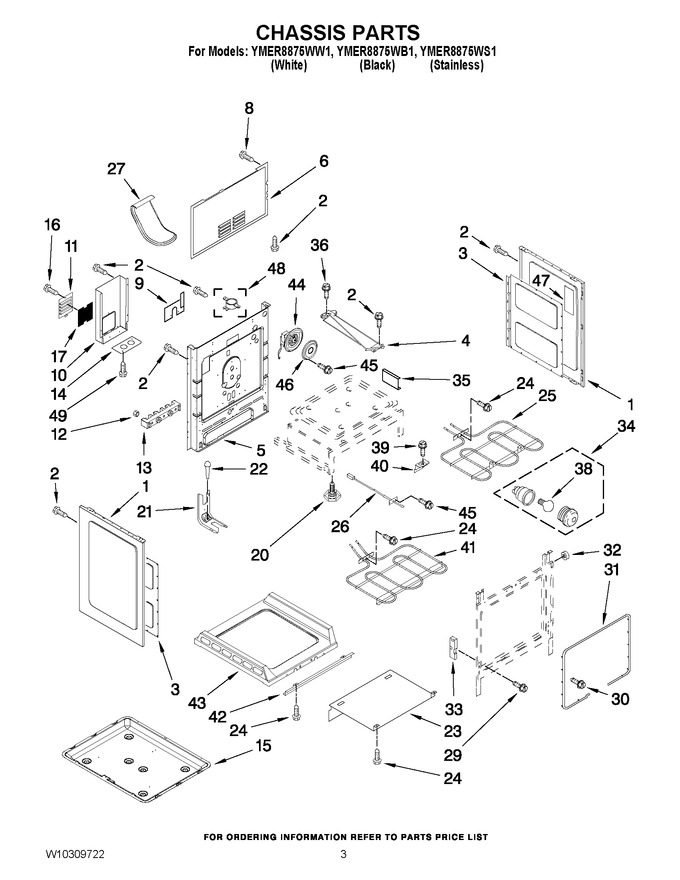

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F172-58		Panel, Side (white)				$ 47.61
1	2618F172-69		Panel, Side (black)				$ 81.90
2	W11169708		Screw   (Replaces: 3196560)				$ 13.36
3	3601F380-51		Retainer, Side				$ 25.83
4	W10792991		Latch Assembly   (Replaces: 8002P104-60)				$ 339.59
5	W10243046		Main Back		Appelez-nous	-
6	W10205618		Cover, Main Wire				$ 78.53
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
9	7003P145-60		Insulator, Cord		Appelez-nous	-
10	W10243045		Cover, Wire (lwr)		Appelez-nous	-
11	4005P704-51		Panel, Access				$ 7.07
12	WP488130		Nut, Term. Block   (Replaces: 7103P082-60)				$ 6.97
13	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 35.17
14	3605P146-51		Plate, Conduit		Appelez-nous	-
15	3401F084-45		Pan, Bake				$ 56.18
16	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
17	W10260573		Screen, Access		Appelez-nous	-
20	W11665456		Leg, Leveling   (Replaces: 7101P507-60)			Immediately	$ 28.11
21	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
22	WP7101P485-60		Screw, Anti Tip   (Replaces: 7101P485-60)				$ 29.26
23	3604F371-51		Shield, Heat				$ 13.98
24	W11244557		Screw, 8ab 1/2   (Replaces: 3196173)				$ 13.61
25	WP7406P493-60		Element, Broil   (Replaces: 7406P493-60)			Immediately	$ 198.88
26	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 106.83
27	8026P081-60		Vent, Oven		Appelez-nous	-
29	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
30	7101P618-60		Screw, Shoulder		Appelez-nous	-
31	W11562931		Gasket   (Replaces: W10162385)			Immediately	$ 87.76
32	74008690		Spacer, Side Pnl.   (Replaces: 8010P148-60)				$ 21.66
33	WP74010551		Receiver, Hinge   (Replaces: 7106P125-60)			Immediately	$ 14.00
34	W11594027		Light Assembly   (Replaces: 3196701)			Immediately	$ 87.01
35	3801P798-51		Bracket, Oven		Appelez-nous	-
36	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 7.75
38	8009		Bulb, Oven   (Replaces: 311255)			Immediately	$ 18.67
39	7101P618-60		Screw, Shoulder		Appelez-nous	-
40	3801P822-45		Support, Ov Btm				$ 5.27
41	WPW10276482		Element, Bake   (Replaces: 7406P451-60)			Immediately	$ 162.33
42	3807P680-45		Support, Oven				$ 33.39
43	WPW10211368		Bottom, Oven   (Replaces: W10211367)			Immediately	$ 318.97
44	7427P105-60		Fan Assy, Convect		Appelez-nous	-
45	WP3196154		Screw   (Replaces: 3196154)				$ 7.82
46	3605F305-19		Plate, Convection		Appelez-nous	-
47	3804F300-51		Insulation				$ 66.09
48	74008715		Switch, Thermal   (Replaces: 7403P857-60)				$ 203.78
49	WP4159193		Screw   (Replaces: 7101P336-60)				$ 4.77
NI	4820F014-59		Strap, Insulation		Appelez-nous	-
NI	3804F316-51		Retainer, Insulation		Appelez-nous	-
NI	W10182346		Insulation, Side				$ 77.83
NI	7002P362-60		Insulation, Wrap				$ 79.17
NI	7002P361-60		Insulation, Bottom		Appelez-nous	-
NI	W10243056		Insulation, Back				$ 57.29
