SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Unit


06 - Wiring Harness, Optional

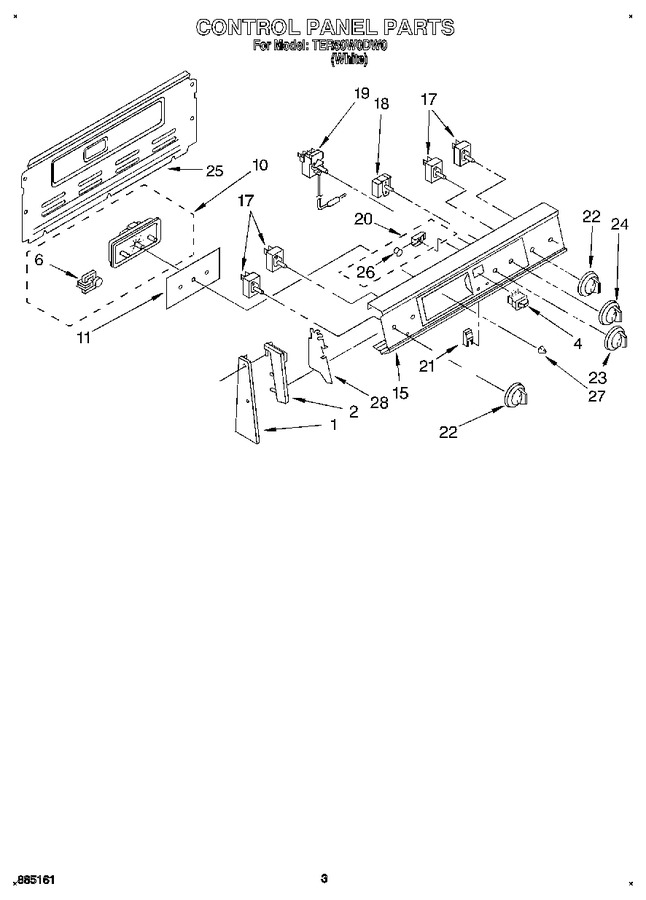

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187671		End Trim R.h.		Appelez-nous	-
1	3187672		End Trim L.h.		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
4	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 89.48
6	309822		Motor, Timer		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
10	661458		Timer, Clock (includes No.6)		Appelez-nous	-
11	313513		Glass, Timer		Appelez-nous	-
15	3169197		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
17	5500-287		Switch, Infinite (rf & Lr)   (Replaces: 3148953)			Immediately	$ 52.39
17	5500-287		Switch, Infinite (lf & Rr)   (Replaces: 3148951)			Immediately	$ 52.39
17	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
18	3169310		Switch, Selector (5 Position)		Appelez-nous	-
18	308119		Screw (2)		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
19	3169526		Thermostat, 0ven		Appelez-nous	-
20	314031		Light, Indicator (oven Unit) (includes Illus. 26)				$ 62.88
21	3150662		Light, Indicator (surface Unit) (includes Illus. 26)		Appelez-nous	-
22	WP3149983		Knob, Infinite (4)   (Replaces: 3149983)				$ 23.23
23	3149988		Knob, Oven Temp.		Appelez-nous	-
24	3149986		Knob, Selector				$ 23.95
25	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
25	3187332		Rear Cover		Appelez-nous	-
26	313101		Lens, Amber (2)		Appelez-nous	-
27	3169182		Knob, Timer (3)		Appelez-nous	-
28	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
28	313608		Shield, Glass (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
