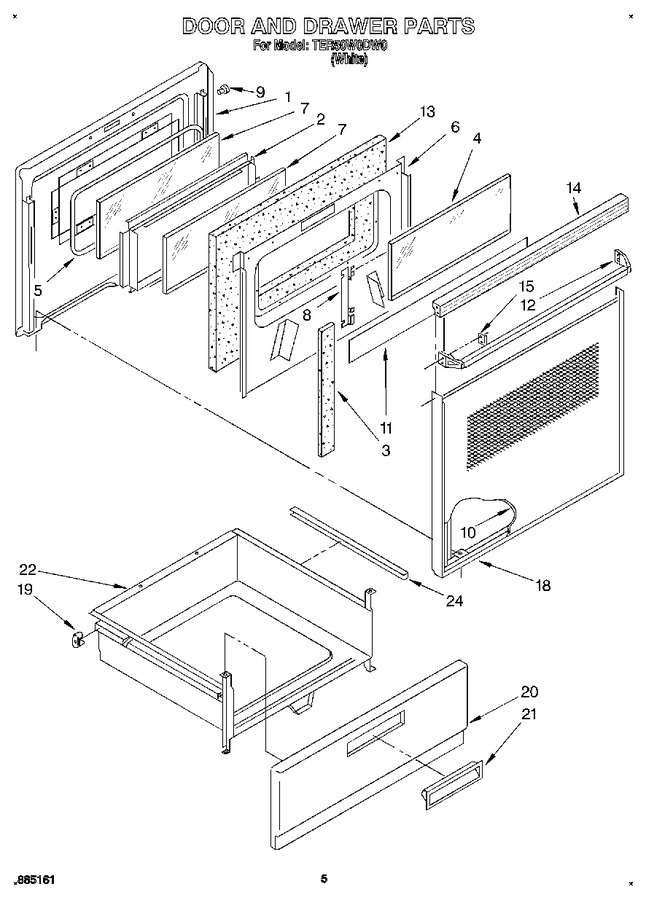

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Oven Door		Appelez-nous	-
2	3185647		Screw (6)		Appelez-nous	-
2	3148234		Frame, Inner Glass		Appelez-nous	-
3	3148441		Seal, Foam		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inside/outside   (Replaces: 3169203)				$ 150.79
8	3148187		Retainer, Glass		Appelez-nous	-
8	3185647		Screw (4)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3188739		Outer Glass, Door		Appelez-nous	-
11	3169191		Foil		Appelez-nous	-
12	WP999367		Screw (2)   (Replaces: 3169474)				$ 7.86
12	3188695		Handle, Door		Appelez-nous	-
13	3147951		Insulation, Door		Appelez-nous	-
14	3149333		Screw, Black (2)				$ 5.33
14	3188692		Top, Door Vent		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
18	3149253		Screw (4)		Appelez-nous	-
18	3188997		Frame, Outer Glass		Appelez-nous	-
18	3149333		Screw (3)				$ 5.33
19	WP488627		Screw (2)   (Replaces: 313349)				$ 7.57
19	307980		Glide, Rear		Appelez-nous	-
20	WP488627		Screw   (Replaces: 313349)				$ 7.57
20	3169430		Panel, Drawer		Appelez-nous	-
21	3150612		Handle, Snap-in		Appelez-nous	-
22	327887		Drawer, Utility		Appelez-nous	-
24	309329		Protector, Drawer (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
