SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Oven


04 - Unit


05 - Door And Drawer


06 - Wiring Harness, Optional

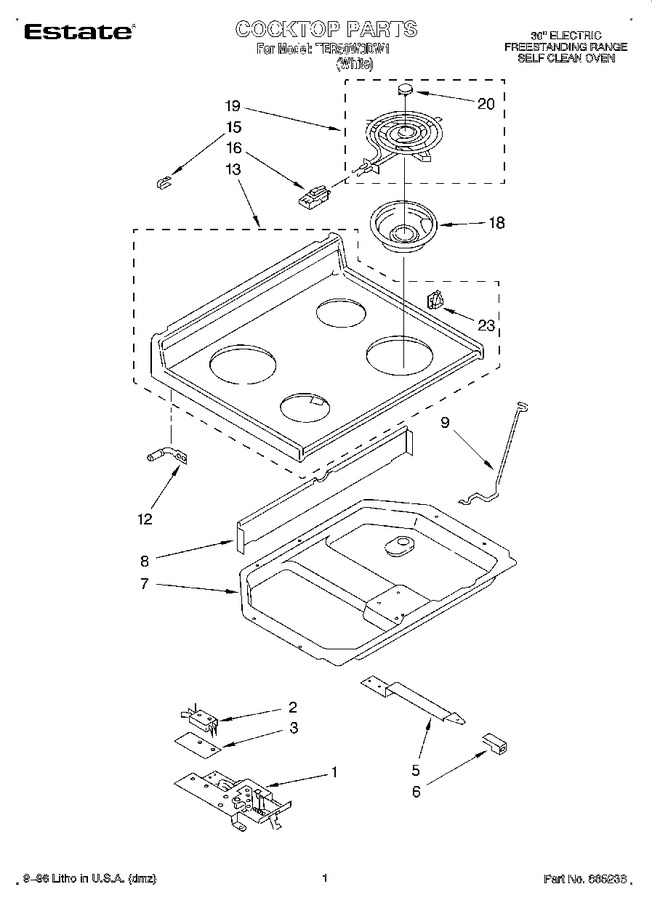

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
1	3148668		Latch Mechanism		Appelez-nous	-
2	3169497		Safety Switch		Appelez-nous	-
2	312717		Screw (2)		Appelez-nous	-
3	3169498		Insulator, Switch		Appelez-nous	-
5	155023		Screw, 8-18 X 1/4			Immediately	$ 7.91
5	3169081		Handle, Latch		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
7	3169186		Box, Burner		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 8.25
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	307973		Shield, Wiring		Appelez-nous	-
9	3148659		Rod, Cooktop		Appelez-nous	-
12	3169384		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
13	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
13	3170981		Cooktop		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.76
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
16	WP313808		Screw (4)   (Replaces: 313808)				$ 8.30
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 16.09
18	W10196405RW		Pan-combination (8`` (2))   (Replaces: 3150247)			Immediately	$ 21.82
18	WPW10196406		Pan-combination (6`` (2))   (Replaces: 3150246)			Immediately	$ 13.39
19	WP660532		Unit, Surface (6`` L.f. & R.r.)   (Replaces: 660529)			Immediately	$ 41.00
19	WP660533		Unit, Surface (8`` R.f. & L.r. (includes Illus. 20))   (Replaces: 660531)			Immediately	$ 43.86
20	309195		Medallion (4)		Appelez-nous	-
23	00487887		Screw (4)   (Replaces: 487887)				$ 244.80
23	814102		Nut (4)				$ 5.27
23	814103		Hold Down Clip (4)   (Replaces: 3148790)				$ 10.52
	LIT3189985		Instructions, Installation		Appelez-nous	-
	LIT3190497		Use & Care Guide		Appelez-nous	-
	LIT3169454		Wiring Diagram		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
