SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Oven


04 - Unit


05 - Door And Drawer


06 - Wiring Harness, Optional

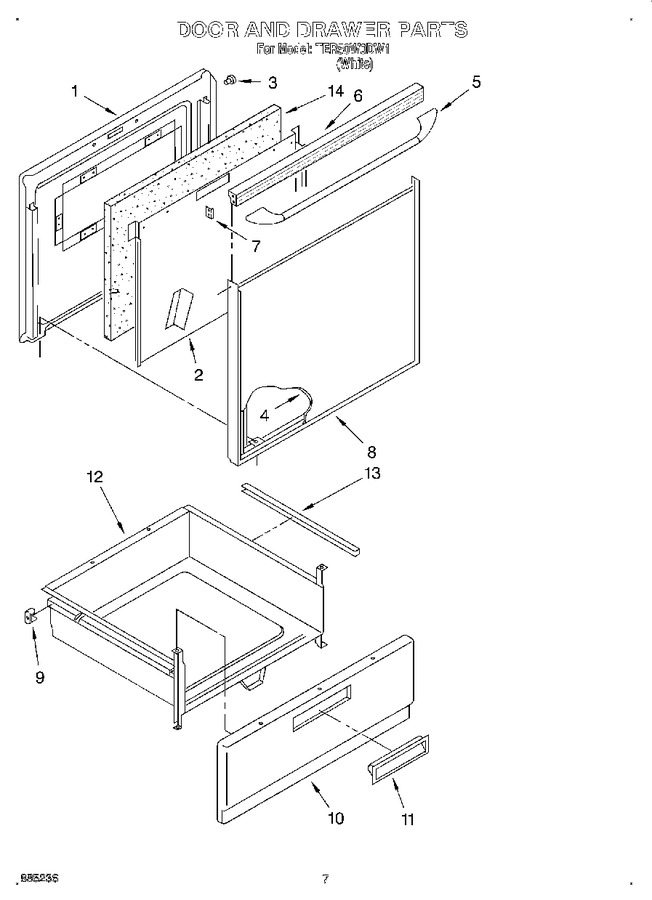

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172219		Liner, Oven Door		Appelez-nous	-
2	3148160		Retainer, Insulation		Appelez-nous	-
2	3185647		Screw (4)		Appelez-nous	-
3	3148182		Bumper, Door (4)		Appelez-nous	-
4	3148186		Panel, Glass		Appelez-nous	-
5	3188695		Handle, Door		Appelez-nous	-
5	WP999367		Screw (2)   (Replaces: 3169474)				$ 7.86
6	3188692		Door Top, Vent		Appelez-nous	-
6	307748		Screw (2)		Appelez-nous	-
7	3148282		Clip, Handle (2)				$ 8.69
8	3149253		Screw (4)		Appelez-nous	-
8	3149333		Screw (3)				$ 5.33
8	3188997		Frame, Door		Appelez-nous	-
9	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 7.57
9	307980		Glide, Rear (2)		Appelez-nous	-
10	3169430		Panel, Drawer (white)		Appelez-nous	-
10	WP488627		Panel Drawer (screw, 8-18 X 1/2)   (Replaces: 313349)				$ 7.57
11	3150612		Handle, Snap-in (white)		Appelez-nous	-
12	327887		Drawer, Utility		Appelez-nous	-
13	309329		Protector (2)		Appelez-nous	-
14	3147951		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
